C6PPS-1606G

Active

CW Industries

DIP CABLE - CDP16S/AE16G/CDP16S

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDP16S/AE16G/CDP16S

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Length	Length	Length	Contact Finish	Color	Connector Type	Cable Termination	Pitch - Cable	Pitch - Cable	Usage	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Rows	Number of Positions	Length [x]	Length [x]
CW Industries C6PPS-1606M	Unshielded	152.4 mm	6 "	0.5 '	Tin	Multiple Ribbon	DIP to DIP	IDC	0.05 "	1.27 mm	Board In Socket (0.3")	16	2.54 µm	100 µin	0.1 in	2.54 mm	2
CW Industries C6PPS-1606G	Unshielded	152.4 mm	6 "	0.5 '	Tin		DIP to DIP	IDC	0.05 "	1.27 mm	Board In Socket (0.3")	16	2.54 µm	100 µin	0.1 in	2.54 mm	2
CW Industries C6PPS-1406M	Unshielded	152.4 mm	6 "	0.5 '	Tin	Multiple Ribbon	DIP to DIP	IDC	0.05 "	1.27 mm	Board In Socket (0.3")		2.54 µm	100 µin	0.1 in	2.54 mm	2	14
CW Industries C6PPS-1418M	Unshielded				Tin	Multiple Ribbon	DIP to DIP	IDC	0.05 "	1.27 mm	Board In Socket (0.3")		2.54 µm	100 µin	0.1 in	2.54 mm	2	14	457.2 mm	1.5 ft
CW Industries C6PPS-1618M	Unshielded				Tin	Multiple Ribbon	DIP to DIP	IDC	0.05 "	1.27 mm	Board In Socket (0.3")	16	2.54 µm	100 µin	0.1 in	2.54 mm	2		457.2 mm	1.5 ft
CW Industries C6PPS-1436G	Unshielded				Tin		DIP to DIP	IDC	0.05 "	1.27 mm	Board In Socket (0.3")		2.54 µm	100 µin	0.1 in	2.54 mm	2	14	914.4 mm	3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

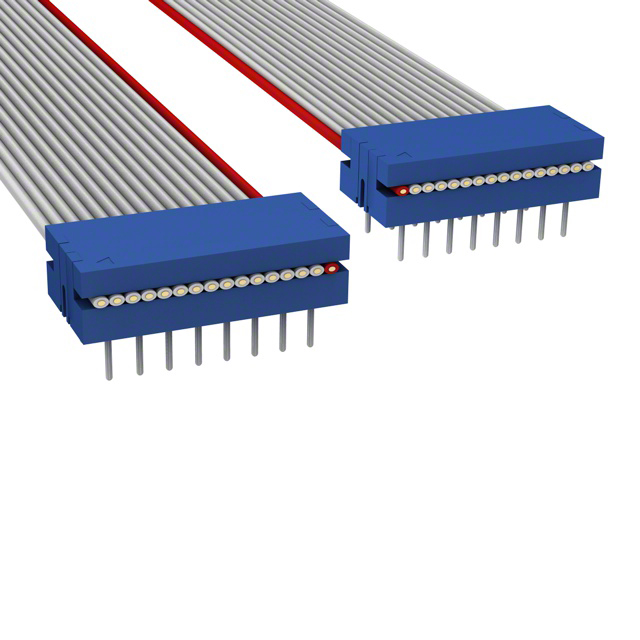

16 Position Cable Assembly Rectangular DIP to DIP 0.500' (152.40mm, 6.00")
