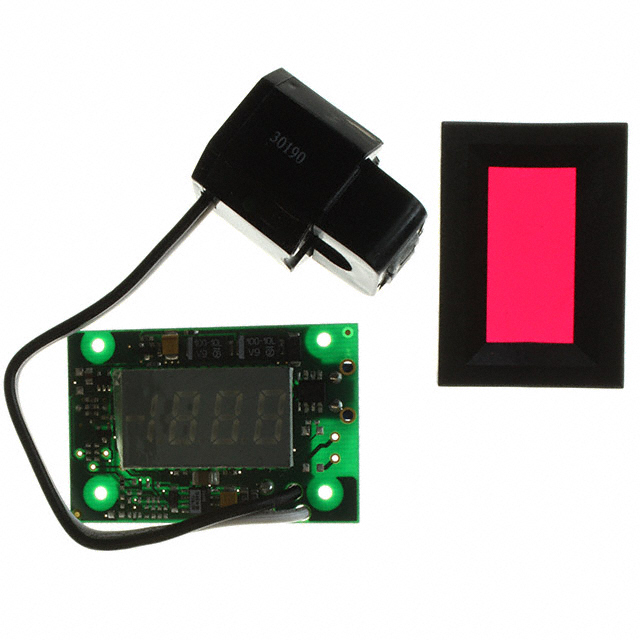

ACA-20RM-0-AC4-RL-C

Obsolete

Murata Power Solutions Inc.

AMMETER 0-199.9MA LED PANEL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACA-20RM-0-AC4-RL-C

Obsolete

Murata Power Solutions Inc.

AMMETER 0-199.9MA LED PANEL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACA-20RM-0-AC4-RL-C

Display Characters - Height	9.4 mm
Display Characters - Height	0.37 in
Display Type	LED - Red Characters
Features	Built In Current Transformer (Primary)
Measuring Range [Max]	199.9 mA
Measuring Range [Min]	0 A
Measuring Type	Current
Mounting Type	Panel Mount - Bezel
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [x]	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply [Max]	264 VAC
Voltage - Supply [Min]	170 VAC
Weight	0.068 lb
Weight	30.84 g

ACA-20RM Series

Part	Number of Characters Per Row	Termination Style	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Measuring Range [Min]	Measuring Range [Max]	Weight	Weight	Display Type	Operating Temperature [Max]	Display Characters - Height	Display Characters - Height	Mounting Type
Murata Power Solutions Inc. ACA-20RM-2-AC4-RL-C	3.5	Screw Terminal	Current	33.93 mm	21.29 mm	Ammeter	Built In Current Transformer (Primary)	264 VAC	170 VAC	0	19.99 A	0.068 lb	30.84 g	LED - Red Characters	60 °C	9.4 mm	0.37 in	Panel Mount - Bezel
Murata Power Solutions Inc. ACA-20RM-5-AC3-RL-ALM-C	3.5	Screw Terminal	Current	33.93 mm	21.29 mm	Ammeter	Built In Current Transformer (Primary)	140 VAC	85 VAC	0 A	30 A	0.095 lb	43.09 g	LED - Red Characters	60 °C	9.4 mm	0.37 in	Panel Mount - Bezel
Murata Power Solutions Inc. ACA-20RM-0-AC4-RL-C	3.5	Screw Terminal	Current	33.93 mm	21.29 mm	Ammeter	Built In Current Transformer (Primary)	264 VAC	170 VAC	0 A	199.9 mA	0.068 lb	30.84 g	LED - Red Characters	60 °C	9.4 mm	0.37 in	Panel Mount - Bezel
Murata Power Solutions Inc. ACA-20RM-4-AC4-RL-C	3.5	Screw Terminal	Current	33.93 mm	21.29 mm	Ammeter	Built In Current Transformer (Primary)	264 VAC	170 VAC	0 A	50 A	0.131 lb	59.42 g	LED - Red Characters	60 °C	9.4 mm	0.37 in	Panel Mount - Bezel
Murata Power Solutions Inc. ACA-20RM-4-AC4-RL-ALM-C	3.5	Screw Terminal	Current	33.93 mm	21.29 mm	Ammeter	Built In Current Transformer (Primary)	264 VAC	170 VAC	0 A	50 A	0.131 lb	59.42 g	LED - Red Characters	60 °C	9.4 mm	0.37 in	Panel Mount - Bezel
Murata Power Solutions Inc. ACA-20RM-4-AC3-RL-C	3.5	Screw Terminal	Current	33.93 mm	21.29 mm	Ammeter	Built In Current Transformer (Primary)	140 VAC	85 VAC	0 A	50 A	0.131 lb	59.42 g	LED - Red Characters	60 °C	9.4 mm	0.37 in	Panel Mount - Bezel
Murata Power Solutions Inc. ACA-20RM-5-AC3-RL-C	3.5	Screw Terminal	Current	33.93 mm	21.29 mm	Ammeter	Built In Current Transformer (Primary)	140 VAC	85 VAC	0 A	30 A	0.095 lb	43.09 g	LED - Red Characters	60 °C	9.4 mm	0.37 in	Panel Mount - Bezel
Murata Power Solutions Inc. ACA-20RM-5-AC4-RL-C	3.5	Screw Terminal	Current	33.93 mm	21.29 mm	Ammeter	Built In Current Transformer (Primary)	264 VAC	170 VAC	0 A	30 A	0.095 lb	43.09 g	LED - Red Characters	60 °C	9.4 mm	0.37 in	Panel Mount - Bezel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ACA-20RM Series

Ammeter LED - Red Characters Display Panel Mount - Bezel
