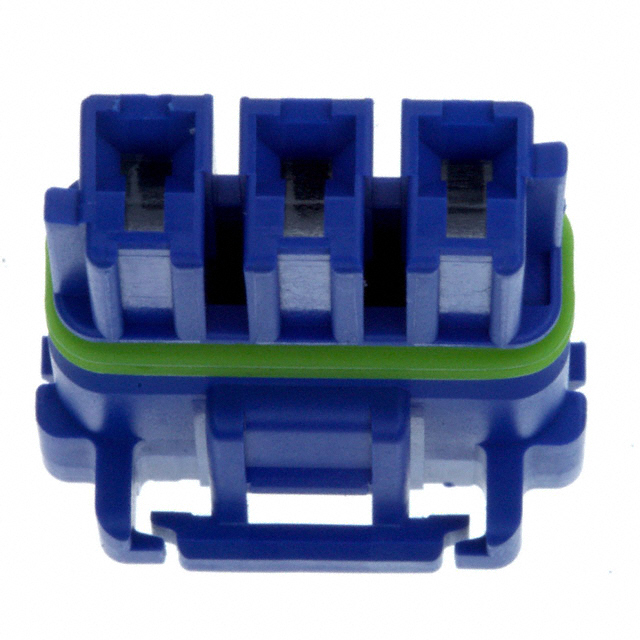

03R-WPJV-3-EM(NN)

Active

JST Sales America Inc.

CONN RCPT HSG 3POS 5.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 3POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Material	Mounting Type	Fastening Type	Contact Type	Number of Rows	Contact Termination	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Features	Note
JST Sales America Inc. 03R-WPJV-1-SMM	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Latch Lock	Female Socket	1	Crimp	5 mm	0.197 in	-25 °C	85 °C	Natural	Receptacle	JIS C 0920 Grade Level 7	Contacts Not Included
JST Sales America Inc. 03R-WPJV-2-RM(NN)		Free Hanging (In-Line)	Latch Lock	Female Socket	1	Crimp	5 mm	0.197 in	-25 °C	85 °C	Red	Receptacle	JIS C 0920 Grade Level 7	Contacts Not Included
JST Sales America Inc. 03R-WPJV-3-EM(NN)		Free Hanging (In-Line)	Latch Lock	Female Socket	1	Crimp	5 mm	0.197 in	-25 °C	85 °C	Blue	Receptacle	JIS C 0920 Grade Level 7	Contacts Not Included
JST Sales America Inc. 03R-WPJV-1-SM(NN)	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Latch Lock	Female Socket	1	Crimp	5 mm	0.197 in	-25 °C	85 °C	Natural	Receptacle	JIS C 0920 Grade Level 7	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	192	$ 1.12

General part information

3 Rectangular Connectors - Housings Receptacle Blue 0.197" (5.00mm)
