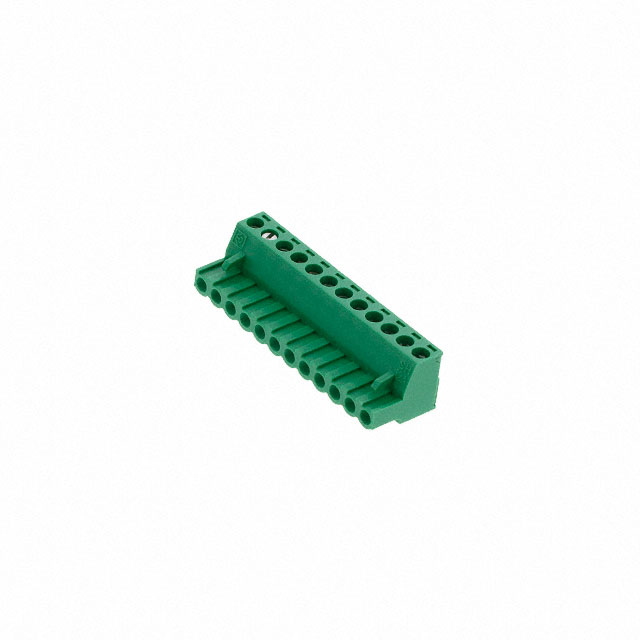

SH12-5,00

Active

Altech Corporation

TERM BLOCK PLUG 12POS 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SH12-5,00

Color	Green
Contact Material	Brass
Contact Mating Finish	Nickel
Current - IEC	16 A
Current - UL	12 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.61 in
Insulation Height	15.49 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	12
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - IEC	450 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	7.5 mm

SH12 Series

Part	Contact Mating Finish	Insulation Height	Insulation Height	Contact Material	Voltage - UL	Positions Per Level	Wire Gauge or Range - mm˛	Number of Positions	Screw Size	Wire Strip Length	Current - UL	Color	Material Flammability Rating	Torque - Screw	Torque - Screw	Voltage - IEC	Current - IEC	Mounting Type	Housing Material	Pitch [x]	Pitch [x]	Termination Style	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Altech Corporation SH12-3,81
Altech Corporation SH12-5,08
TE Connectivity Raychem Cable Protection SH12-10,00
Altech Corporation SH12-10,00
Altech Corporation SH12-5,00	Nickel	0.61 in	15.49 mm	Brass	300 V	12	2.5 mm˛	12	M3	7.5 mm	12 A	Green	UL94 V-0	4.4 Lb-In	0.5 Nm	450 V	16 A	Free Hanging (In-Line)	Polyamide (PA) Nylon	5 mm	0.197 in	Screw - Rising Cage Clamp	Plug Female Sockets	14 AWG	30 AWG	1
Altech Corporation SH12-10,16
TE Connectivity Raychem Cable Protection SH12-3,81-K
Altech Corporation SH12-3,81-K
TE Connectivity Raychem Cable Protection SH12-3,50	Nickel			Copper Alloy	300 V	12		12	M2	8 mm	11 A	Green	UL94 V-0	2.2 Lb-In	0.25 Nm	160 V	8 A	Free Hanging (In-Line)	Polyamide (PA) Nylon	3.5 mm	0.138 in	Screw - Rising Cage Clamp	Plug Female Sockets	14 AWG	30 AWG	1	1.5 mm˛	0.25 mm˛	-30 ░C	105 ░C
Altech Corporation SH12-3,50	Nickel			Copper Alloy	300 V	12		12	M2	8 mm	11 A	Green	UL94 V-0	2.2 Lb-In	0.25 Nm	160 V	8 A	Free Hanging (In-Line)	Polyamide (PA) Nylon	3.5 mm	0.138 in	Screw - Rising Cage Clamp	Plug Female Sockets	14 AWG	30 AWG	1	1.5 mm˛	0.25 mm˛	-30 ░C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.67
		50	$ 5.22
		100	$ 5.01
		1000	$ 3.83

Description

General part information

SH12 Series

12 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
