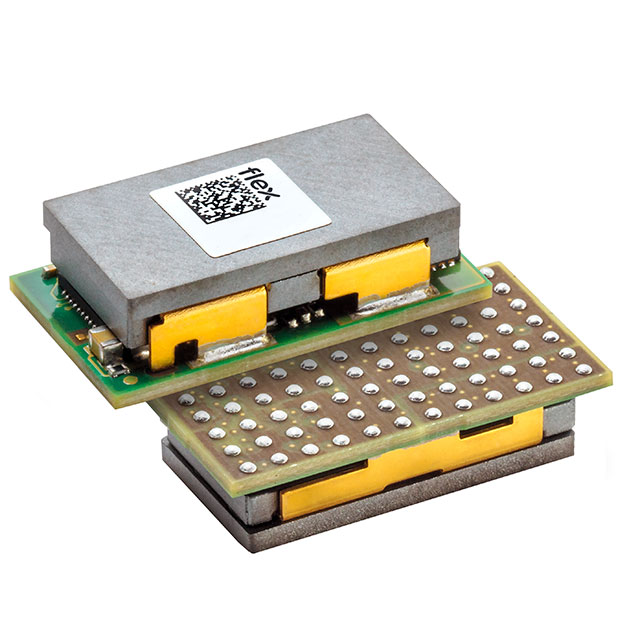

BMR4668012/001

LTB

Flex Power Modules

DC DC CONVERTER 0.6-1.8V 108W

Search across all available documentation for this part.

LTB

Flex Power Modules

DC DC CONVERTER 0.6-1.8V 108W

Technical Specifications

Parameters and characteristics for this part

Specification	BMR4668012/001

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	60 A
Efficiency	93.6 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	84-BLGA Module
Power (Watts)	108 W
Size / Dimension [x]	25 mm
Size / Dimension [x]	0.98 "
Size / Dimension [y]	14 mm
Size / Dimension [y]	0.55 in
Size / Dimension [z]	0.28 "
Size / Dimension [z]	7 mm
Standard Number	62368-1
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	1.8 V
Voltage - Output 1 [Min]	0.6 V

Part	Applications	Standard Number	Current - Output (Max) [Max]	Approval Agency	Type	Efficiency	Power (Watts)	Mounting Type	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs
Flex Power Modules BMR4668004/001	ITE (Commercial)	62368-1	60 A	CB CSA IEC TUV UL	Non-Isolated PoL Module Digital	93.6 %	108 W	Surface Mount	Active Low Enable	14 mm	25 mm	0.98 "	0.55 in	0.28 "	7 mm	14 V	Adjustable Output PMBus™ Remote On/Off Remote Sense	1.8 V	0.6 V	84-BLGA Module	4.5 V	-40 °C	150 °C	1
Flex Power Modules BMR4668012/001	ITE (Commercial)	62368-1	60 A	CB CSA IEC TUV UL	Non-Isolated PoL Module Digital	93.6 %	108 W	Surface Mount	Active Low Enable	14 mm	25 mm	0.98 "	0.55 in	0.28 "	7 mm	14 V	Adjustable Output PMBus™ Remote On/Off Remote Sense	1.8 V	0.6 V	84-BLGA Module	4.5 V	-40 °C	150 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 25.94
	Digi-Reel®	1	$ 25.94
	Tape & Reel (TR)	160	$ 25.94

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 60A 4.5V - 14V Input
