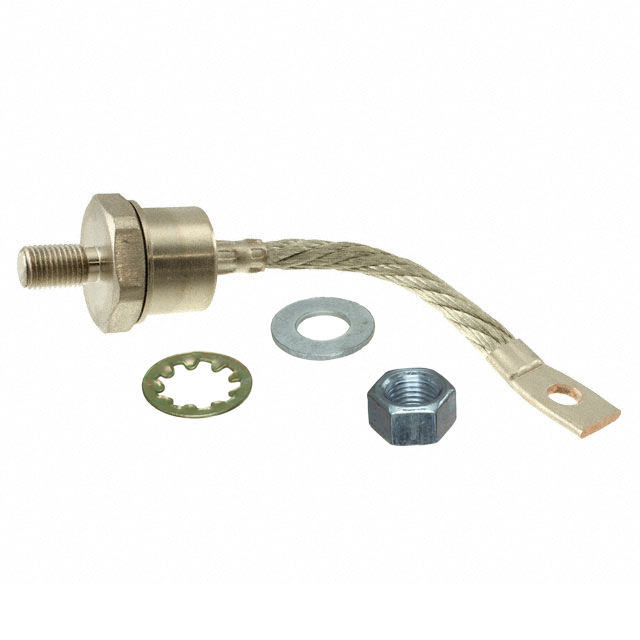

S150QR

Active

GeneSiC Semiconductor

DIODE GP REV 1.2KV 150A DO205AA

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GP REV 1.2KV 150A DO205AA

Technical Specifications

Parameters and characteristics for this part

Specification	S150QR

Current - Average Rectified (Io)	150 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-8, DO-205AA
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-8
Supplier Device Package	DO-205AA
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.2 V

Part	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Supplier Device Package	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case	Technology
GeneSiC Semiconductor S150MR	Standard Recovery >500ns	200 mA	1.2 V	200 C	-65 C	150 A	DO-8	DO-205AA	10 µA	1000 V	Chassis Stud Mount	DO-205AA DO-8 Stud	Reverse Polarity Standard
GeneSiC Semiconductor S150J	Standard Recovery >500ns	200 mA	1.2 V	200 C	-65 C	150 A	DO-8	DO-205AA	10 µA	600 V	Chassis Stud Mount	DO-205AA DO-8 Stud	Standard
GeneSiC Semiconductor S150M	Standard Recovery >500ns	200 mA	1.2 V	200 C	-65 C	150 A	DO-8	DO-205AA	10 µA	1000 V	Chassis Stud Mount	DO-205AA DO-8 Stud	Standard
GeneSiC Semiconductor S150JR	Standard Recovery >500ns	200 mA	1.2 V	200 C	-65 C	150 A	DO-8	DO-205AA	10 µA	600 V	Chassis Stud Mount	DO-205AA DO-8 Stud	Reverse Polarity Standard
GeneSiC Semiconductor S150QR	Standard Recovery >500ns	200 mA	1.2 V	200 C	-65 C	150 A	DO-8	DO-205AA	10 µA	1.2 kV	Chassis Stud Mount	DO-205AA DO-8 Stud	Reverse Polarity Standard
GeneSiC Semiconductor S150KR	Standard Recovery >500ns	200 mA	1.2 V	200 C	-65 C	150 A	DO-8	DO-205AA	10 µA	800 V	Chassis Stud Mount	DO-205AA DO-8 Stud	Reverse Polarity Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 29.66

General part information

Diode 1200 V 150A Chassis, Stud Mount DO-205AA (DO-8)
