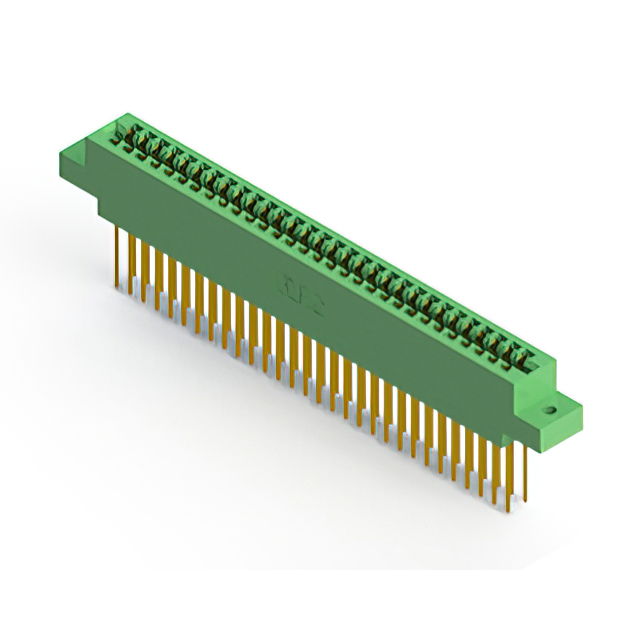

317-060-540-802

Active

EDAC Inc.

CONN EDGE DUAL FMALE 60POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

317-060-540-802

Active

EDAC Inc.

CONN EDGE DUAL FMALE 60POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	317-060-540-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap

317-060 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Material	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Contact Type	Termination	Material - Insulation	Pitch [x]	Pitch [x]	Contact Finish	Flange Feature	Number of Rows	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Read Out	Number of Positions	Color	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 317-060-540-878	10 Áin	0.25 Ám	Card Guides	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	30	Cantilever	Wire Wrap	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	Gold	4-40 Threaded Insert Top Mount Opening	2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	Dual	60	Green
EDAC Inc. 317-060-540-804	10 Áin	0.25 Ám		Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	30	Cantilever	Wire Wrap	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	Gold	Top Mount Opening Unthreaded	2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	Dual	60	Green	0.156 in	3.96 mm
EDAC Inc. 317-060-540-802	10 Áin	0.25 Ám		Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	30	Cantilever	Wire Wrap	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	Gold		2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	Dual	60	Green
EDAC Inc. 317-060-540-807	10 Áin	0.25 Ám		Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	30	Cantilever	Wire Wrap	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	Gold	M3 Threaded Insert Top Mount Opening	2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	Dual	60	Green
EDAC Inc. 317-060-540-808	10 Áin	0.25 Ám		Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	30	Cantilever	Wire Wrap	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	Gold	4-40 Threaded Insert Top Mount Opening	2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	Dual	60	Green
EDAC Inc. 317-060-542-801	10 Áin	0.25 Ám		Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	30	Cantilever	Wire Wrap	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	Gold		2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	Dual	60	Green
EDAC Inc. 317-060-542-878	10 Áin	0.25 Ám	Card Guides	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	30	Cantilever	Wire Wrap	Diallyl Phthalate (DAP)	0.156 in	3.96 mm	Gold	4-40 Threaded Insert Top Mount Opening	2	Female	125 °C	-65 ░C	Non Specified - Dual Edge	Dual	60	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 76.17

Description

General part information

317-060 Series

60 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
