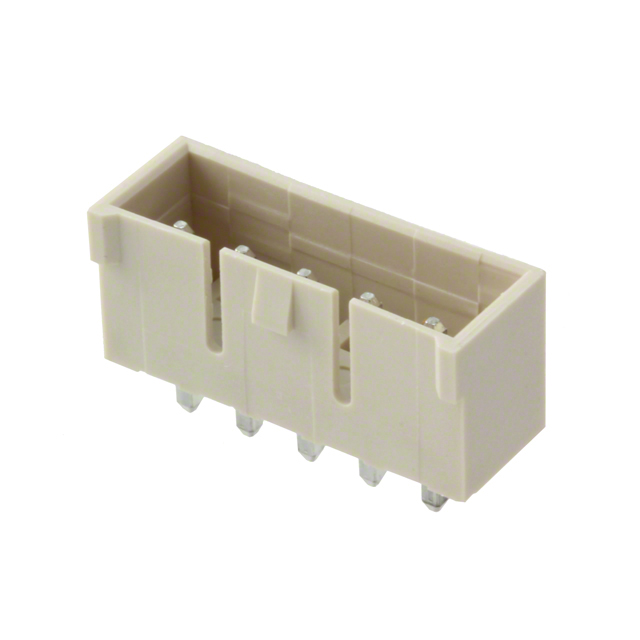

0353130560

Active

Molex

CONN HEADER VERT 5POS 3.96MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0353130560

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	10 mm
Insulation Height	0.394 "
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

035313 Series

Headers & Wire Housings 3.96 PITCH W/B CONN.WAFER

Part	Style	Mounting Type	Insulation Color	Insulation Height	Insulation Height	Insulation Material	Contact Type	Number of Positions Loaded	Number of Positions	Number of Rows	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Termination	Material Flammability Rating	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Material	Shrouding
Molex 0353130660	Board to Cable/Wire	Through Hole	Natural	10 mm	0.394 "	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	All	6	1	Locking Ramp	0.134 in	3.4 mm	Tin	Solder	UL94 V-0	Header	0.156 in	3.96 mm	0.228 in	5.8 mm	Square	Brass	Shrouded - 4 Wall
Molex 0353130560	Board to Cable/Wire	Through Hole	Natural	10 mm	0.394 "	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	All		1	Locking Ramp	0.134 in	3.4 mm	Tin	Solder	UL94 V-0	Header	0.156 in	3.96 mm	0.228 in	5.8 mm	Square	Brass	Shrouded - 4 Wall
Molex 0353130210	Board to Cable/Wire	Through Hole	Natural	10 mm	0.394 "	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	All	2	1	Locking Ramp	0.134 in	3.4 mm	Tin	Solder	UL94 V-0	Header	0.156 in	3.96 mm	0.228 in	5.8 mm	Square	Brass	Shrouded - 4 Wall
Molex 0353130860	Board to Cable/Wire	Through Hole	Natural	10 mm	0.394 "	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	All	8	1	Locking Ramp	0.134 in	3.4 mm	Tin	Solder	UL94 V-0	Header	0.156 in	3.96 mm	0.228 in	5.8 mm	Square	Brass	Shrouded - 4 Wall
Molex 0353131010	Board to Cable/Wire	Through Hole	Natural	10 mm	0.394 "	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	All	10	1	Locking Ramp	0.134 in	3.4 mm	Tin	Solder	UL94 V-0	Header	0.156 in	3.96 mm	0.228 in	5.8 mm	Square	Brass	Shrouded - 4 Wall
Molex 0353130460	Board to Cable/Wire	Through Hole	Natural	10 mm	0.394 "	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	All	4	1	Locking Ramp	0.134 in	3.4 mm	Tin	Solder	UL94 V-0	Header	0.156 in	3.96 mm	0.228 in	5.8 mm	Square	Brass	Shrouded - 4 Wall
Molex 0353130550
Molex 0353130760
