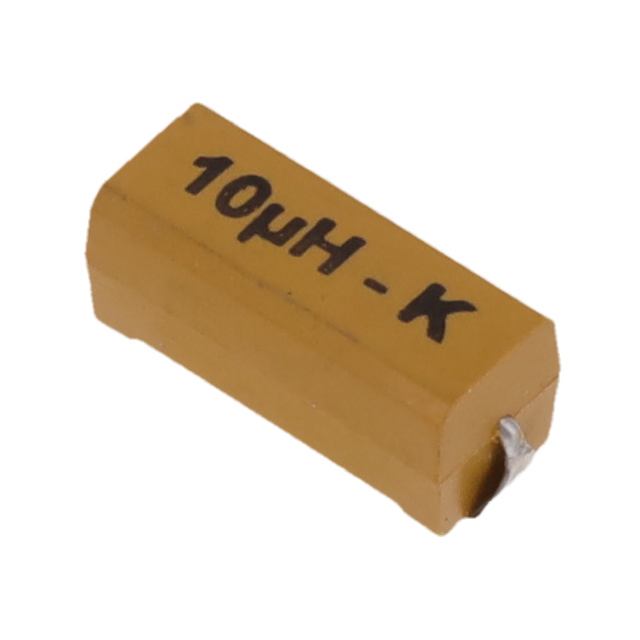

3615A100K
ActiveTE Connectivity Passive Product
FIXED IND 10UH 620MA 600MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3615A100K
ActiveTE Connectivity Passive Product
FIXED IND 10UH 620MA 600MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3615A100K |
|---|---|
| Current Rating (Amps) | 0.62 A |
| Frequency - Self Resonant | 42 MHz |
| Height - Seated (Max) [Max] [z] | 5.3 mm |
| Height - Seated (Max) [Max] [z] | 0.209 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Iron |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 7.9 MHz, 35 |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.512 in |
| Size / Dimension [x] | 13 mm |
| Size / Dimension [y] | 0.197 " |
| Size / Dimension [y] | 5 mm |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.25 | |
| 10 | $ 7.11 | |||
| 25 | $ 6.60 | |||
| 50 | $ 6.39 | |||
| 100 | $ 6.08 | |||
| 250 | $ 5.98 | |||
| Tape & Reel (TR) | 500 | $ 5.77 | ||
| 1000 | $ 5.48 | |||
Description
General part information
3615 Series
10 µH Unshielded Drum Core, Wirewound Inductor 620 mA 600mOhm Max Nonstandard
