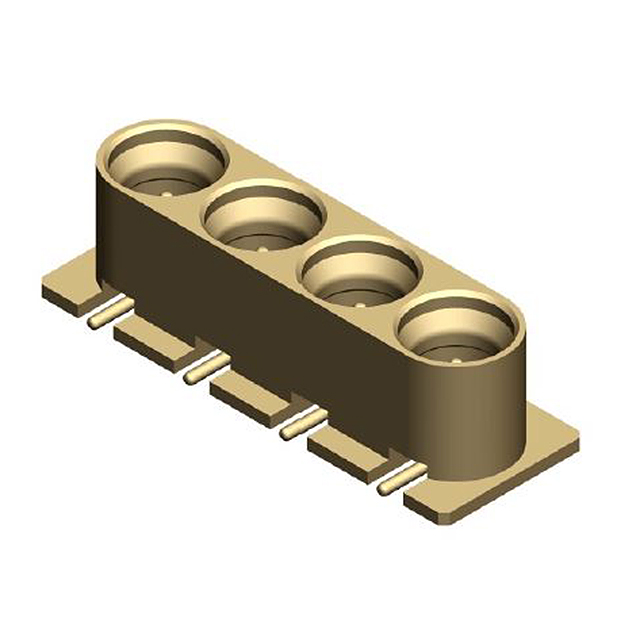

W1S12B-40ML5
ActiveRosenberger
CONN PCB PLUG QUAD STR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W1S12B-40ML5
ActiveRosenberger
CONN PCB PLUG QUAD STR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W1S12B-40ML5 |
|---|---|
| Body Finish | Gold |
| Body Material | Nickel, Iron, Cobalt |
| Center Contact Material | Cobalt, Iron, Nickel |
| Center Contact Plating | Gold |
| Connector Style | WSMP |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max [Max] | 100 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 4 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
W1S12B-40 Series
WSMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
