LSR1-04C32-2780-00

Active

New Energy

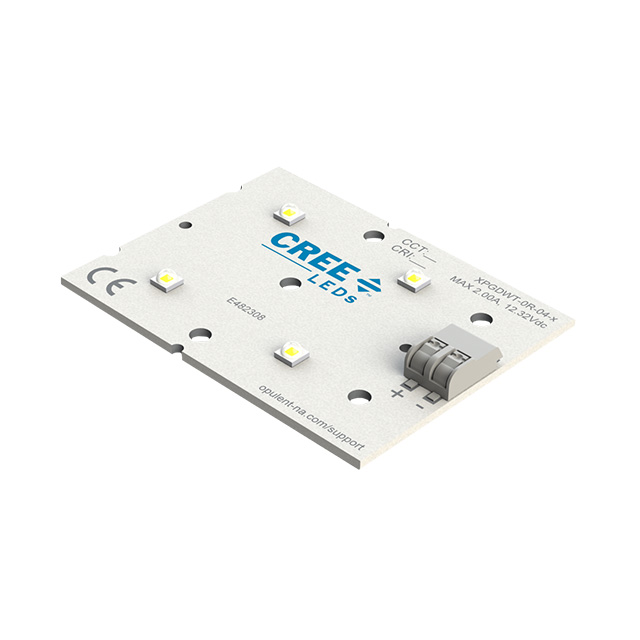

LED MOD XP-G3 WM WH RECT 2700K

Search across all available documentation for this part.

Active

New Energy

LED MOD XP-G3 WM WH RECT 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	LSR1-04C32-2780-00

CCT (K)	2700 K
Color	White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	80
Current - Max [Max]	2 A
Current - Test	350 mA
Height [z]	1.52 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	145 lm/W
Luminous Flux @ Current/Temperature	556 lm
Size / Dimension [x]	59.59 mm
Size / Dimension [y]	45.01 mm
Temperature - Test	85 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	10.92 V

Part	Luminous Flux @ Current/Temperature	Configuration	Temperature - Test	CRI (Color Rendering Index)	Color	Voltage - Forward (Vf) (Typ)	Current - Test	Height [z]	Type	Current - Max [Max]	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Lumens/Watt @ Current - Test	CCT (K)
New Energy LSR1-04C32-3070-00	624 lm	Rectangle	85 °C	70	Warm White	10.92 V	350 mA	1.52 mm	LED Module	2 A	3000 K	45.01 mm	59.59 mm	Flat	163 lm/W
New Energy LSR1-04C32-5080-00	624 lm	Rectangle	85 °C	80	Cool White	10.92 V	350 mA	1.52 mm	LED Module	2 A	5000 K	45.01 mm	59.59 mm	Flat	163 lm/W	5-Step MacAdam Ellipse
New Energy LSR1-04C32-2780-00	556 lm	Rectangle	85 °C	80	Warm White	10.92 V	350 mA	1.52 mm	LED Module	2 A	2700 K	45.01 mm	59.59 mm	Flat	145 lm/W
New Energy LSR1-04C32-4080-00	592 lm	Rectangle	85 °C	80	Neutral White	10.92 V	350 mA	1.52 mm	LED Module	2 A	4000 K	45.01 mm	59.59 mm	Flat	155 lm/W
New Energy LSR1-04C32-3080-00	556 lm	Rectangle	85 °C	80	Warm White	10.92 V	350 mA	1.52 mm	LED Module	2 A	3000 K	45.01 mm	59.59 mm	Flat	145 lm/W
New Energy LSR1-04C32-5070-00	656 lm	Rectangle	85 °C	70	Cool White	10.92 V	350 mA		LED Module	2 A	5000 K	45.01 mm	59.59 mm	Domed	171 lm/W	5-Step MacAdam Ellipse
New Energy LSR1-04C32-2790-00	456 lm	Rectangle	85 °C	90	Warm White	10.92 V	350 mA		LED Module	2 A	2700 K	45.01 mm	59.59 mm	Domed	119 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 12.20

General part information

LED Lighting COBs Engines Modules LED Module XP-G3 White, Warm Rectangle
