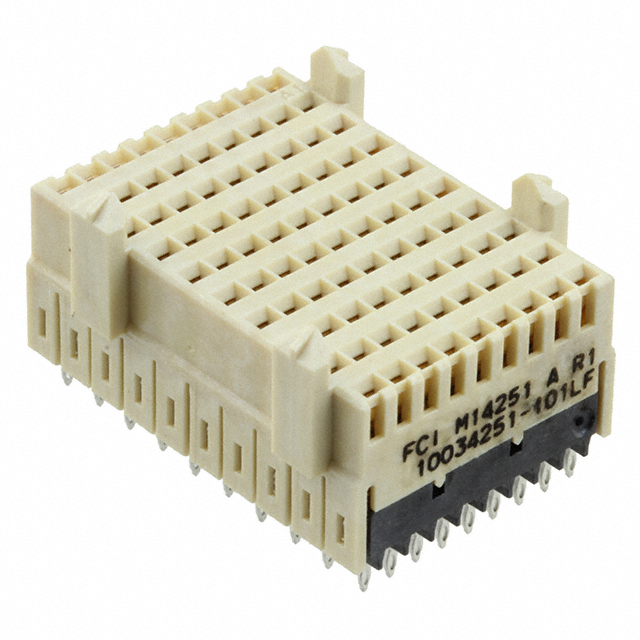

10034251-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 90POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 90POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10034251-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	9
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Contact Finish	Termination	Connector Type	Pitch [x]	Pitch [x]	Connector Usage	Number of Rows	Connector Style	Number of Columns	Number of Positions Loaded	Material Flammability Rating	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Mounting Type
Amphenol ICC (FCI) 10034251-101LF	Gold	Press-Fit	Receptacle Female Sockets	0.055 in	1.4 mm	Daughtercard	9	High Speed	10	All	UL94 V-0	90	Natural	0.76 Ám	30 Áin	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

90 Connector Receptacle, Female Sockets Through Hole Natural High Speed
