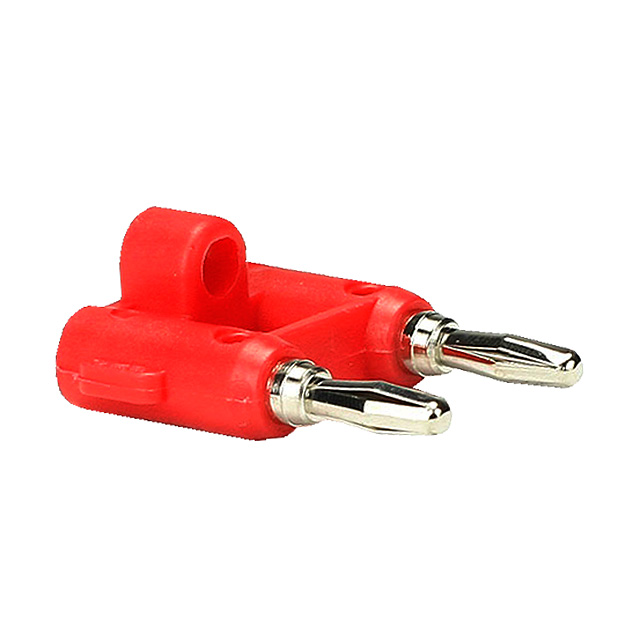

CT3160-2

Active

Cal Test Electronics

CONN DBL BAN PLG STACK SLDRLESS

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN DBL BAN PLG STACK SLDRLESS

Technical Specifications

Parameters and characteristics for this part

Specification	CT3160-2

Body Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Red
Contact Finish	Nickel
Contact Material	Beryllium Copper
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Banana Plug, Double, Stackable
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Body Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Plug/Mating Plug Diameter	Type	Contact Material	Color	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Mounting Type	Termination
Cal Test Electronics CT3160-2	Acrylonitrile Butadiene Styrene (ABS)	Nickel	-20 C	80 C	Standard Banana	Banana Plug Double Stackable	Beryllium Copper	Red	Non-Mating End Insulated	22 AWG	17.5 AWG	Male	Free Hanging (In-Line)	Solderless

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.50

General part information

Banana Plug, Double, Stackable Connector Standard Banana Solderless Red
