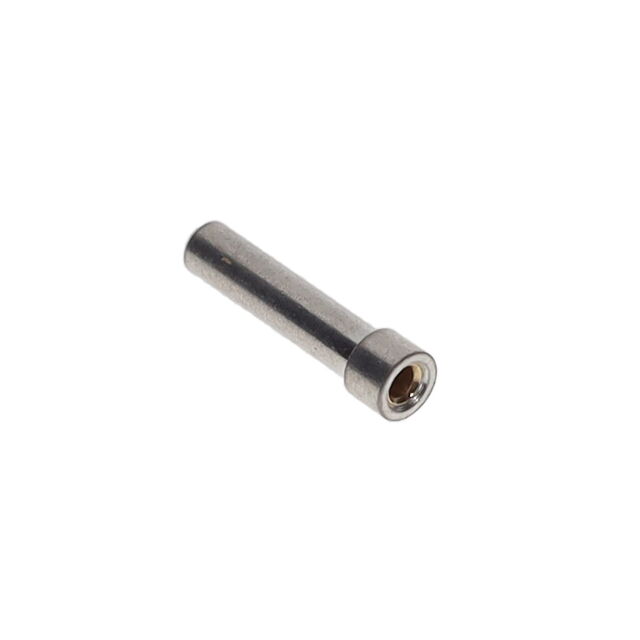

8363-0-15-01-35-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	8363-0-15-01-35-27-10-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall	7.37 mm
Length - Overall	0.29 in
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.23 in
Socket Depth	5.84 mm
Tail Type	Standard Tail
Termination	Solder

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Length - Overall	Length - Overall	Termination	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 8363-0-15-01-35-27-10-0	0.057 "	1.45 mm	0.23 in	5.84 mm	-55 °C	125 °C	0.76 Ám	30 Áin	Beryllium Copper	Standard Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	7.37 mm	0.29 in	Solder	Gold	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 8363-0-15-01-35-14-10-0	0.057 "	1.45 mm	0.23 in	5.84 mm	-55 °C	125 °C	0.25 Ám	10 Áin	Beryllium Copper	Standard Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	7.37 mm	0.29 in	Solder	Gold	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 8363-0-15-15-35-27-10-0	0.057 "	1.45 mm	0.23 in	5.84 mm	-55 °C	125 °C	0.76 Ám	30 Áin	Beryllium Copper	Standard Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	7.37 mm	0.29 in	Solder	Gold	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 8363-0-15-80-35-84-10-0	0.057 "	1.45 mm	0.23 in	5.84 mm	-55 °C	125 °C	2.54 µm	100 µin	Beryllium Copper	Standard Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	7.37 mm	0.29 in	Solder	Tin	1.83 mm	0.072 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Solder
