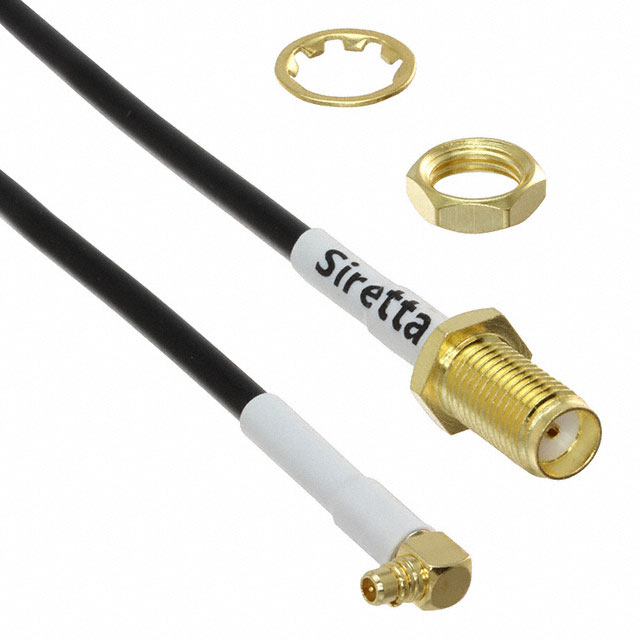

ASMK010X174S11
ActiveSiretta Ltd
CBL ASSY SMA-MMCX JCK-PLG 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASMK010X174S11
ActiveSiretta Ltd
CBL ASSY SMA-MMCX JCK-PLG 3.937"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMK010X174S11 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | MMCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.97 | |
| 10 | $ 9.97 | |||
| 25 | $ 9.01 | |||
| 50 | $ 8.36 | |||
| 100 | $ 7.78 | |||
| 250 | $ 7.08 | |||
| 500 | $ 6.71 | |||
Description
General part information
ASMK010 Series
Cable Assembly Coaxial SMA to MMCX RG-174 3.937" (100.00mm)
