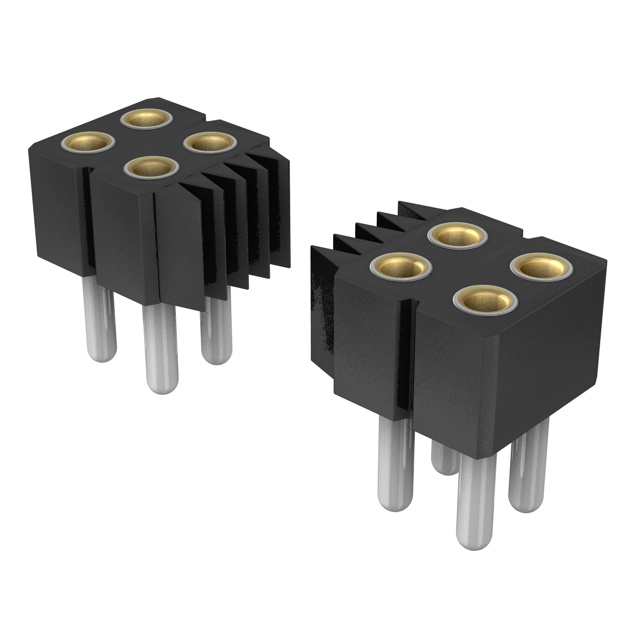

833-83-022-10-273101

Active

PRECI-DIP SA

CONN SOCKET 22POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

833-83-022-10-273101

Active

PRECI-DIP SA

CONN SOCKET 22POS 0.079 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	833-83-022-10-273101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

833-83 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions	Contact Material	Termination	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Type	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Number of Rows	Fastening Type	Current Rating (Amps)	Connector Type	Insulation Color	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
PRECI-DIP SA 833-83-022-10-273101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	22 positions	Beryllium Copper	Solder	0.122 "	3.1 mm	Through Hole	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm
PRECI-DIP SA 833-83-054-10-453101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	54	Beryllium Copper	Solder		3.2 mm	Through Hole	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm	0.315 in	8 mm	0.126 in
PRECI-DIP SA 833-83-030-10-457101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	30	Beryllium Copper	Solder	0.118 in	3 mm	Through Hole	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm
PRECI-DIP SA 833-83-010-10-453101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	10	Beryllium Copper	Solder		3.2 mm	Through Hole	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm	0.315 in	8 mm	0.126 in
PRECI-DIP SA 833-83-018-10-453101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	18	Beryllium Copper	Solder		3.2 mm	Through Hole	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm	0.315 in	8 mm	0.126 in
PRECI-DIP SA 833-83-088-10-457101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	88	Beryllium Copper	Solder	0.118 in	3 mm	Through Hole	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm
PRECI-DIP SA 833-83-070-10-001101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	70	Beryllium Copper	Solder			Through Hole	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm			0.125 in	3.18 mm	0.165 in	4.2 mm
PRECI-DIP SA 833-83-014-20-001101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	14	Beryllium Copper	Solder		3.2 mm	Through Hole Right Angle	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm			0.126 in		0.165 in	4.2 mm
PRECI-DIP SA 833-83-040-64-001101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	40	Beryllium Copper	Press-Fit Solder	0.098 in	2.5 mm	Through Hole	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm					0.165 in	4.2 mm
PRECI-DIP SA 833-83-056-30-001101	-55 °C	125 °C	UL94 V-0	29.5 Áin	0.75 Ám	Circular	56	Beryllium Copper	Solder			Surface Mount	Female Socket	Tin	0.079 in	2 mm	Gold	2	Push-Pull	3 A	Socket	Black	All	0.079 in	2 mm	0.228 in	5.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 4.17

Description

General part information

833-83 Series

22 Position Socket Connector 0.079" (2.00mm) Through Hole Gold
