R317074000

Active

Radiall USA, Inc.

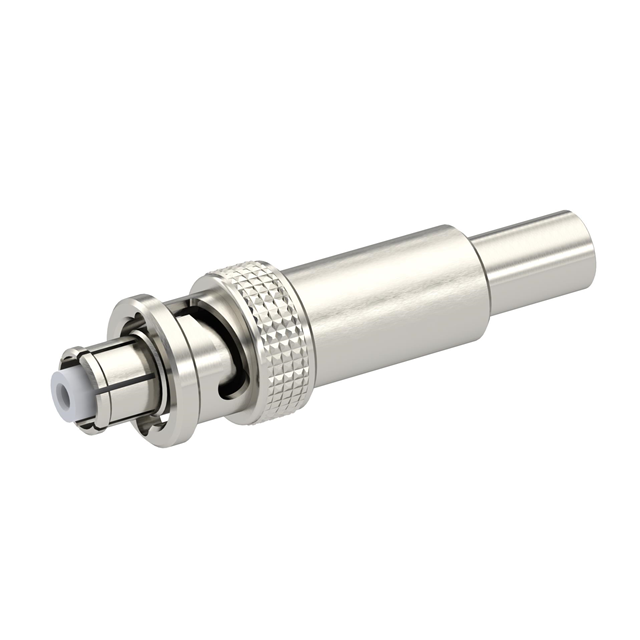

SHV / STRAIGHT FEMALE CRIMP TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SHV / STRAIGHT FEMALE CRIMP TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R317074000

Body Finish	Nickel
Body Material	Brass
Cable Group	62, RG-59
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SHV
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Body Finish	Connector Style	Cable Group	Number of Ports	Body Material	Center Contact Material	Mounting Type	Mating Cycles	Impedance	Dielectric Material	Shield Termination	Connector Type	Fastening Type	Housing Color	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Includes	Cable Group
Radiall USA, Inc. R317074000	Nickel	SHV	62 RG-59	1	Brass	Beryllium Copper	Free Hanging (In-Line)	500	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	Female Socket Jack	Bayonet Lock	Silver	Gold	2 GHz	-65 ░C	165 °C	Crimp
Radiall USA, Inc. R317072000	Nickel	SHV	RG-58	1	Brass	Beryllium Copper Brass	Free Hanging (In-Line)	500	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	Female Socket Plug	Bayonet Lock	Silver	Gold	2 GHz	-65 ░C	165 °C	Crimp	1 Connector 1 Contact 1 Ferrule	141

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SHV Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
