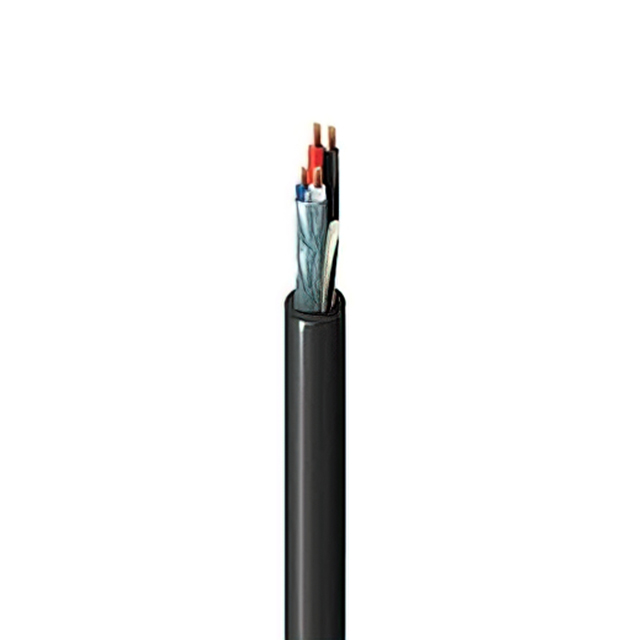

1502SB 0101000
ActiveBelden Inc.
2#18 PP + 2FS #22 FHDPE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1502SB 0101000
ActiveBelden Inc.
2#18 PP + 2FS #22 FHDPE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1502SB 0101000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polypropylene (PP), Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 16, 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Rip Cord, Drain Wire, UV Resistant, Flame Retardant |
| Jacket (Insulation) Diameter [diameter] | 0.255 " |
| Jacket (Insulation) Diameter [diameter] | 6.48 mm |
| Jacket (Insulation) Thickness | 1.143 mm |
| Jacket (Insulation) Thickness | 0.045 in |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style CMG |
| Shield Coverage | 100 % |
| Shield Material | Polyester, Aluminum |
| Shield Type | Foil |
| Usage | Control, Marine |
| Voltage | 300 V |
| Wire Gauge | 22 AWG, 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.39 | |
Description
General part information
1502SB Series
4 (1 Pair + 2) Conductor Multi-Pair Cable Black 18 AWG, 22 AWG Foil 1000.0' (304.8m)
