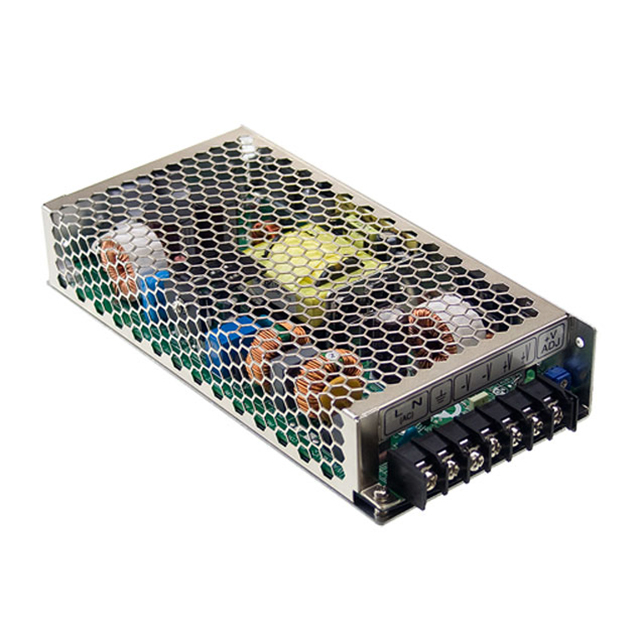

HRP-200-5
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 5V 175W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HRP-200-5
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 5V 175W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HRP-200-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 35 A |
| Efficiency | 84 % |
| Features | Universal Input, Remote Sense, Adjustable Output, PFC |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 175 W |
| Size / Dimension [x] | 199 mm |
| Size / Dimension [x] | 7.83 in |
| Size / Dimension [y] | 3.86 in |
| Size / Dimension [y] | 98 mm |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 75.31 | |
| 5 | $ 70.95 | |||
| 10 | $ 69.15 | |||
| 25 | $ 66.84 | |||
Description
General part information
HRP-200 Series
Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC, 120 ~ 370 VDC Input
