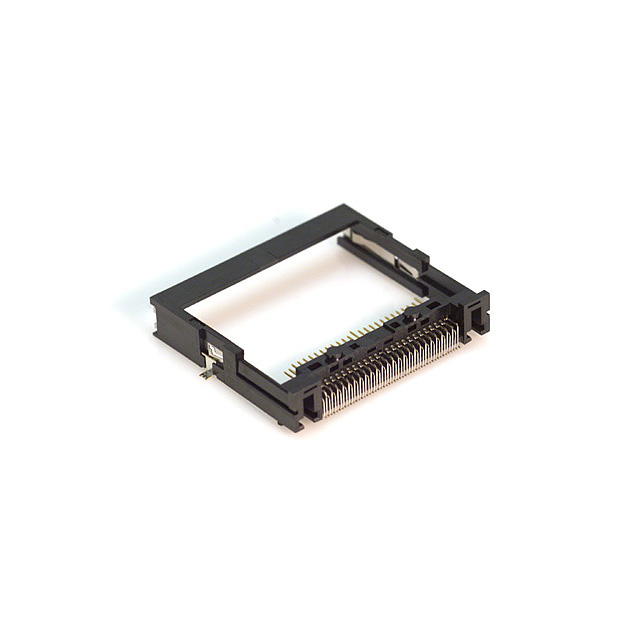

MI21A-50PDR-SF(71)

Obsolete

Hirose Electric USA, Inc.

CONN COMPACT FLASH CARD R/A SMD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN COMPACT FLASH CARD R/A SMD

Technical Specifications

Parameters and characteristics for this part

Part	Card Type	Height Above Board	Height Above Board	Contact Finish	Mounting Feature	Features	Mounting Type	Number of Positions	Insertion, Removal Method	Connector Type	Ejector Side
Hirose Electric USA, Inc. MI21-50PD-SF	CompactFlash® - Type I II	0.281 in	7.15 mm	Gold	Normal Standard - Top	Board Guide	Surface Mount Right Angle	50	Pull Out Push In
Hirose Electric USA, Inc. MI21A-50PDR-SF(71)	CompactFlash® - Type I II	0.341 in	8.65 mm	Gold	Reverse - Bottom	Board Guide	Surface Mount Right Angle	50	Pull Out Push In
Hirose Electric USA, Inc. MI21A-50PD-SF-EJR(91)	CompactFlash® - Type I II	0.27 in	6.85 mm	Gold	Normal Standard - Top	Board Guide Card Guide	Surface Mount Right Angle	50	Push In Push Out	Connector and Ejector	Right
Hirose Electric USA, Inc. MI21-50PD-SF-EJRA(71)	CompactFlash® - Type I II	0.281 in	7.15 mm	Gold	Normal Standard - Top	Board Guide	Surface Mount Right Angle	50	Push In Push Out	Connector and Ejector	Right
Hirose Electric USA, Inc. MI21A-50PD-SF	CompactFlash® - Type I II	0.341 in	8.65 mm	Gold	Normal Standard - Top	Board Guide	Surface Mount Right Angle	50	Pull Out Push In
Hirose Electric USA, Inc. MI21-50PD-SF-EJL(71)	CompactFlash® - Type I II	0.281 in	7.15 mm	Gold	Normal Standard - Top	Board Guide	Surface Mount Right Angle	50	Push In Push Out	Connector and Ejector	Left
Hirose Electric USA, Inc. MI21-50PD-SF-EJL(91)	CompactFlash® - Type I II	0.27 in	6.85 mm	Gold	Normal Standard - Top	Board Guide	Surface Mount Right Angle	50	Push In Push Out	Connector and Ejector	Left

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Card Connector CompactFlash® - Type I, II Surface Mount, Right Angle Gold
