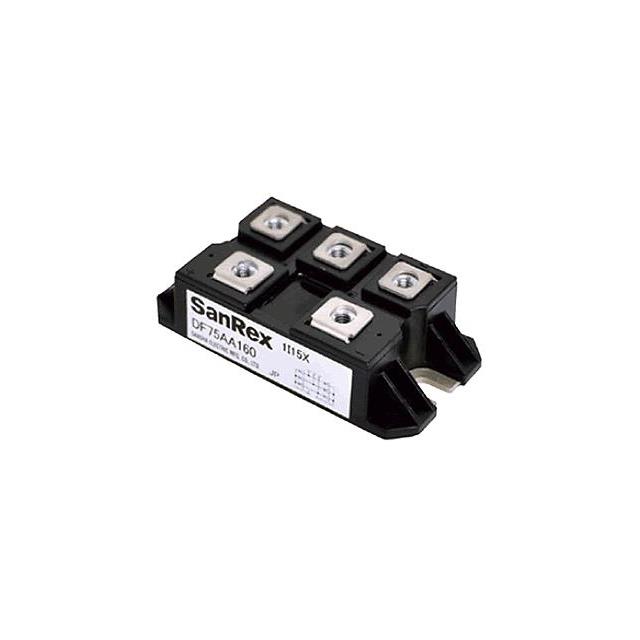

DF75BA80

Active

SanRex Corporation

DIODE MODULE 800V 75A

Search across all available documentation for this part.

Active

SanRex Corporation

DIODE MODULE 800V 75A

Technical Specifications

Parameters and characteristics for this part

Specification	DF75BA80

Current - Average Rectified (Io)	75 A
Current - Reverse Leakage @ Vr	10 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V
Voltage - Peak Reverse (Max) [Max]	800 V

Part	Technology	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Diode Type	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Peak Reverse (Max)
SanRex Corporation DF75LB80	Standard	75 A	1.3 V	Module	Three Phase	Chassis Mount	8 mA	800 V	150 °C	-40 °C
SanRex Corporation DF75BA80	Standard	75 A	1.2 V	Module	Three Phase	Chassis Mount	10 mA	800 V	150 °C	-40 °C
SanRex Corporation DF75LA160	Standard	75 A	1.3 V	Module	Three Phase	Chassis Mount	8 mA		150 °C	-40 °C	1.6 kV
SanRex Corporation DF75LB160	Standard	75 A	1.3 V	Module	Three Phase	Chassis Mount	8 mA		150 °C	-40 °C	1.6 kV
SanRex Corporation DF75LA80	Standard	75 A	1.3 V	Module	Three Phase	Chassis Mount	8 mA	800 V	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	19	$ 42.71

General part information

Bridge Rectifier Three Phase Standard 800 V Chassis Mount
