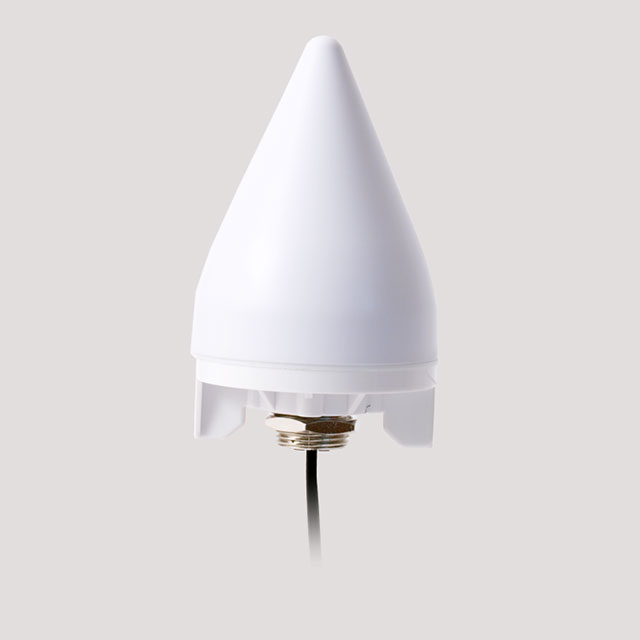

MT-9B-AC-BLW01

Obsolete

Unictron Technologies Corporation

EXTERNAL ONE PORT GNSS ANTENNA

Search across all available documentation for this part.

Obsolete

Unictron Technologies Corporation

EXTERNAL ONE PORT GNSS ANTENNA

Technical Specifications

Parameters and characteristics for this part

Specification	MT-9B-AC-BLW01

Antenna Type	Dome
Applications	GLONASS, GNSS, GPS, Beidou, Galileo
Features	LNA, Cable - 5m
Frequency (Center/Band)	1.575 GHz, 1.602 GHz, 1.561 GHz
Frequency Group	UHF
Frequency Group [Max]	2 GHz
Frequency Group [Min]	1 GHz
Gain	-1 dBi, 0.6 dBi, 2 dBic
Height (Max) [Max]	3.071 in
Height (Max) [Max]	78 mm
Ingress Protection	IP67
Number of Bands	3
RF Family/Standard	Navigation
Termination	SMB, SMA, BNC, MCX, GT5, SMC, TNC
VSWR	2

Part	RF Family/Standard	Antenna Type	Applications	Frequency (Center/Band)	Ingress Protection	Features	Height (Max) [Max]	Height (Max) [Max]	Number of Bands	VSWR	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Gain	Termination
Unictron Technologies Corporation MT-9B-AC-BLW01	Navigation	Dome	Beidou Galileo GLONASS GNSS GPS	1.561 GHz 1.575 GHz 1.602 GHz	IP67	Cable - 5m LNA	3.071 in	78 mm	3	2	2 GHz	1 GHz	UHF	-1 dBi 0.6 dBi 2 dBic	BNC GT5 MCX SMA SMB SMC TNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Dome BNC, GT5, MCX, SMA, SMB, SMC, TNC Panel Mount
