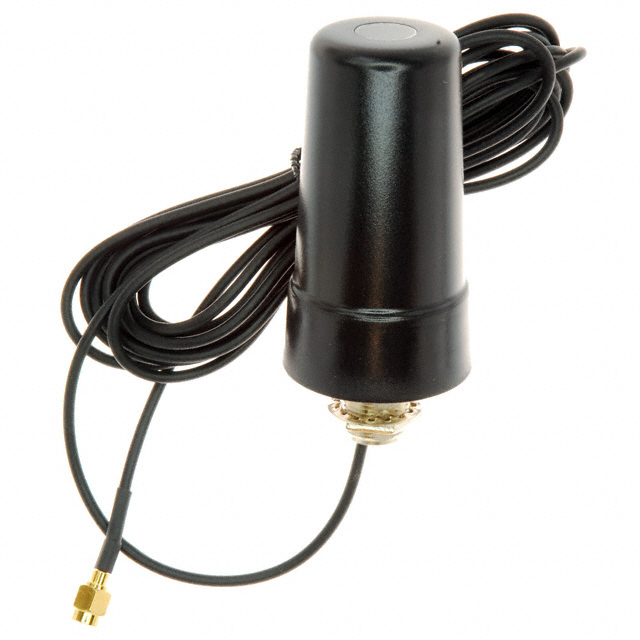

W765FL-120-AH-AGDP
ActiveNearson Inc.
RF ANT 850MHZ/900MHZ DOME PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
W765FL-120-AH-AGDP
ActiveNearson Inc.
RF ANT 850MHZ/900MHZ DOME PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | W765FL-120-AH-AGDP |
|---|---|
| Antenna Type | Dome |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 900 MHz, 850 MHz, 1.9 GHz, 1.8 GHz |
| Frequency Range [Max] | 960 MHz, 1.99 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 72 mm |
| Height (Max) [Max] [z] | 2.835 " |
| Number of Bands | 4 |
| Termination | RP-SMA Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.75 | |
| 10 | $ 39.06 | |||
| 25 | $ 36.07 | |||
| 100 | $ 32.74 | |||
| 250 | $ 31.24 | |||
Description
General part information
W765FL Series
RF ANTENNA Dome RP-SMA Male Panel Mount
Documents
Technical documentation and resources
No documents available
