0050-3111-011
ActiveAdvanced Photonix

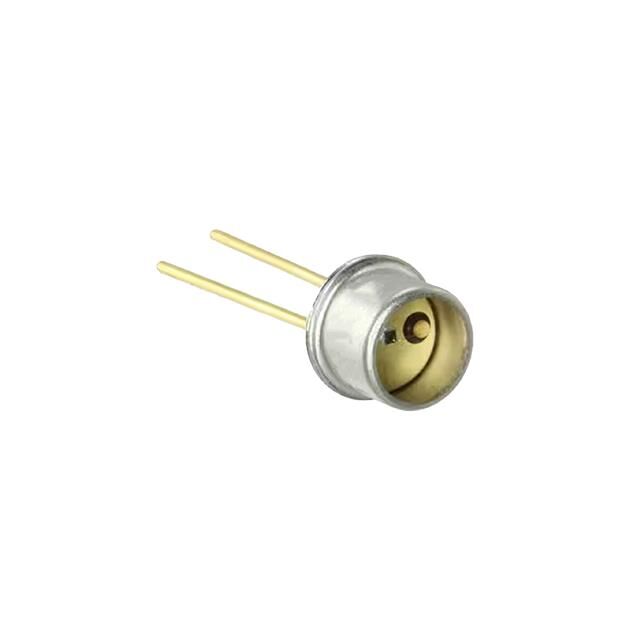

SENSOR PHOTODIOD 900-1700NM TO46
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0050-3111-011 |
|---|---|
| Active Area [diameter] | 0.25 mm |
| Color - Enhanced | Red, Infrared (NIR) |
| Current - Dark (Typ) | 200 pA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Responsivity @ nm [custom] | 0.83 A/W |
| Responsivity @ nm [custom] | 0.95 A/W |
| Voltage - DC Reverse (Vr) (Max) [Max] | 35 V |
| Wavelength [Max] | 1700 nm |
| Wavelength [Min] | 900 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.29 | |
| 40 | $ 8.46 | |||
| 80 | $ 8.04 | |||
| 440 | $ 7.26 | |||
| 960 | $ 7.00 | |||
Description
General part information
0050-3111 Series
Photodiode 900nm ~ 1700nm TO-46-2 Lens Top Metal Can
