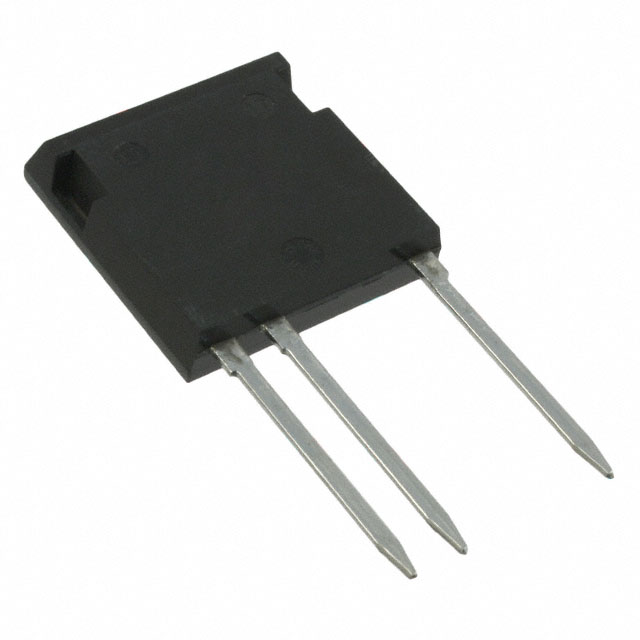

IXBF12N300

NRND

IXYS

IGBT 3000V 26A 125W ISOPLUSI4

Search across all available documentation for this part.

NRND

IXYS

IGBT 3000V 26A 125W ISOPLUSI4

Technical Specifications

Parameters and characteristics for this part

Specification	IXBF12N300

Current - Collector (Ic) (Max) [Max]	26 A
Current - Collector Pulsed (Icm)	98 A
Gate Charge	62 nC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	i4-Pac™-5 (3 Leads)
Reverse Recovery Time (trr)	1.4 µs
Supplier Device Package	ISOPLUS i4-PAC™
Vce(on) (Max) @ Vge, Ic	3.2 V

Part	Reverse Recovery Time (trr)	Vce(on) (Max) @ Vge, Ic	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Collector Pulsed (Icm)	Gate Charge	Current - Collector (Ic) (Max) [Max]	Supplier Device Package
IXYS IXBF12N300	1.4 µs	3.2 V	i4-Pac™-5 (3 Leads)	-55 °C	150 °C	Through Hole	98 A	62 nC	26 A	ISOPLUS i4-PAC™

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	25	$ 31.51

General part information

IGBT 3000 V 26 A 125 W Through Hole ISOPLUS i4-PAC™
