QFX-QSFP-DACBO-3M-C

Active

ATGBICS

COMPATIBLE DAC 40G 3M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QFX-QSFP-DACBO-3M-C

Active

ATGBICS

COMPATIBLE DAC 40G 3M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QFX-QSFP-DACBO-3M-C

Cable Connectors	QSFP+ to SFP+ (4)
Cable Type	Round
Color	Black
Connector Type	Plug to Plug
Connector Type	4
Fastening Type	Push-Pull
Features	Passive
Gender	Male to Male
Length [x]	9.84 ft
Length [x]	3 m
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Shielding	Unshielded
Usage	Data Center Server Rack, Ethernet, Network
Wire Gauge	30 AWG

QFX-QSFP Series

Part	Connector Type	Connector Type	Fastening Type	Cable Type	Length [x]	Length [x]	Color	Usage	Gender	Cable Connectors	Shielding	Features	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Wire Gauge	Mounting Type	Data Rate	Voltage - Supply	Applications	Wavelength
ATGBICS QFX-QSFP-DACBO-1M-AOC-C	Plug to Plug	4	Push-Pull	Round	1 m	3.28 ft	Aqua Orange	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to SFP+ (4)	Unshielded	Active	70 °C	0 °C
ATGBICS QFX-QSFP-DAC-5M-C	Plug to Plug		Push-Pull	Round			Black	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to QSFP+	Unshielded	Passive	70 °C	0 °C	24 AWG
ATGBICS QFX-QSFP-DAC-3M-C	Plug to Plug		Push-Pull	Round	3 m	9.84 ft	Black	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to QSFP+	Unshielded	Passive	70 °C	0 °C		28 AWG 30 AWG
ATGBICS QFX-QSFP-DACBO-3M-C	Plug to Plug	4	Push-Pull	Round	3 m	9.84 ft	Black	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to SFP+ (4)	Unshielded	Passive	70 °C	0 °C	30 AWG
ATGBICS QFX-QSFP-DACBO-1M-C	Plug to Plug	4	Push-Pull	Round	1 m	3.28 ft	Black	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to SFP+ (4)	Unshielded	Passive	70 °C	0 °C	30 AWG
ATGBICS QFX-QSFP-DAC-2M-C	Plug to Plug		Push-Pull	Round	2 m	6.56 ft	Black	Network	Male to Male	QSFP+ to QSFP+	Unshielded	Passive
ATGBICS QFX-QSFP28-DAC-5M-C	Plug to Plug		Push-Pull	Round			Black	Data Center Server Rack Ethernet Network	Male to Male	QSFP28 to QSFP28	Unshielded	Passive	70 °C	0 °C	26 AWG
ATGBICS QFX-QSFP-40G-ESR4-C	MPO-12																Pluggable QSFP+	40 Gbps	3.3 V	General Purpose Networking	850 nm
ATGBICS QFX-QSFP-DACBO-5M-C	Plug to Plug	4	Push-Pull	Round			Black	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to SFP+ (4)	Unshielded	Passive	70 °C	0 °C	26 AWG
ATGBICS QFX-QSFP-40G-SR4-C	MPO-12																Pluggable QSFP+	40 Gbps	3.3 V	General Purpose Networking	850 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 93.00
		50	$ 88.35
		150	$ 83.70
		1000	$ 79.05
	Retail Package	1	$ 112.25
		100	$ 106.64
		1000	$ 101.03

Description

General part information

QFX-QSFP Series

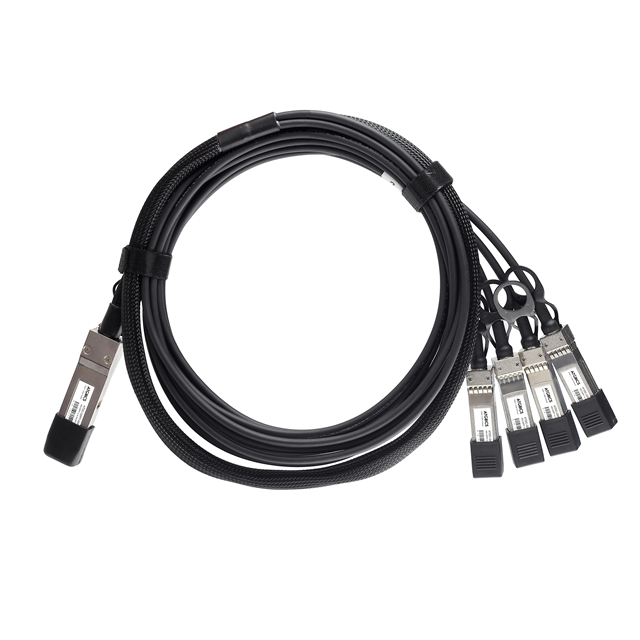

Position QSFP+ to SFP+ (4) Plug to Plug (4) 9.84' (3.00m) Black Unshielded
