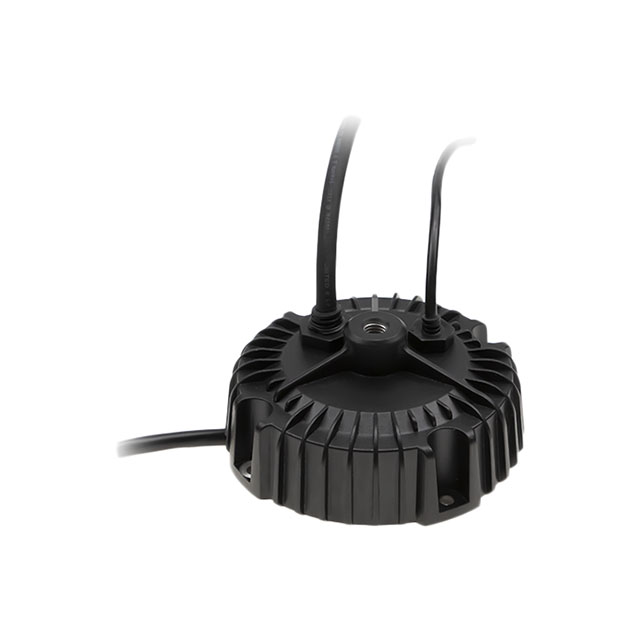

XBG-240-A-C
ActiveMEAN WELL USA Inc.
240W CONSTANT POWER MODE LED DRI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XBG-240-A-C
ActiveMEAN WELL USA Inc.
240W CONSTANT POWER MODE LED DRI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XBG-240-A-C |
|---|---|
| Approval Agency | cURus, CE, ENEC, CB, CCC |
| Current - Output (Max) [Max] | 4.9 A |
| Efficiency | 93 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 240 W |
| Ratings | IP67 |
| Size / Dimension [custom] | 65 mm |
| Size / Dimension [custom] | 2.56 in |
| Size / Dimension [diameter] | 176 mm |
| Size / Dimension [diameter] | 6.93 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 60 VDC |
| Voltage - Output [Min] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 65.05 | |
| 5 | $ 59.44 | |||
| 10 | $ 57.17 | |||
| 25 | $ 54.30 | |||
Description
General part information
XBG-240 Series
4.9A 30 ~ 60V Constant Current LED Driver AC DC Converter Topology 1 Output
