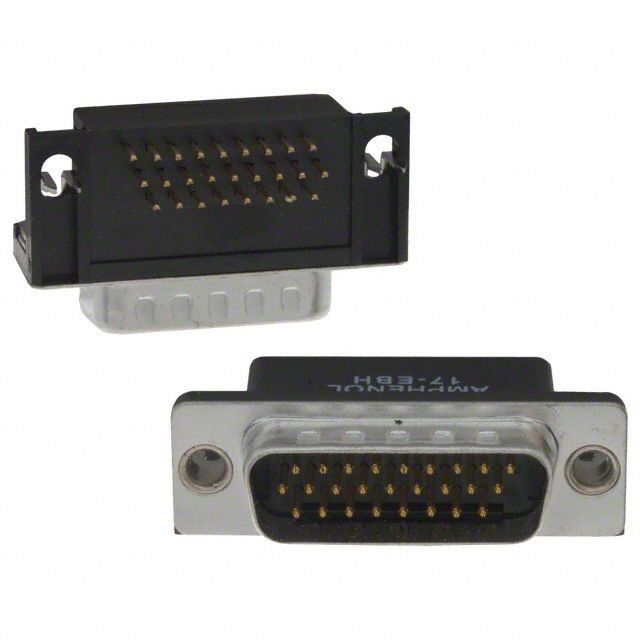

17EBH-026-P-AM-0-10

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 26P R/A SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 26P R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	17EBH-026-P-AM-0-10

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Features	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder
Voltage Rating	125 VDC

Part	Contact Finish	Connector Type	Material Flammability Rating	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Number of Positions	Contact Material	Color	Contact Form	Features	Voltage Rating	Shell Size, Connector Layout	Shell Size, Connector Layout	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Connector Style	Mounting Type	Flange Feature	Backset Spacing	Backset Spacing	Current Rating (Amps)	Shell Material, Finish	Termination
Amphenol ICC (Commercial Products) 17EBH-026-P-AM-0-10	Gold	Male Pins Plug	UL94 V-0	3	0.76 Ám	30 Áin	Glass Filled Nylon Polyamide (PA)	26	Copper Alloy	Black	Stamped	Board Lock Grounding Indents	125 VDC	2	(DA A) High Density	105 ░C	-55 °C	Signal	D-Sub High Density	Through Hole Right Angle	Housing/Shell (Unthreaded)	8.89 mm	0.35 in	3 A	Nickel Plated Steel	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position D-Sub, High Density Plug, Male Pins Connector
