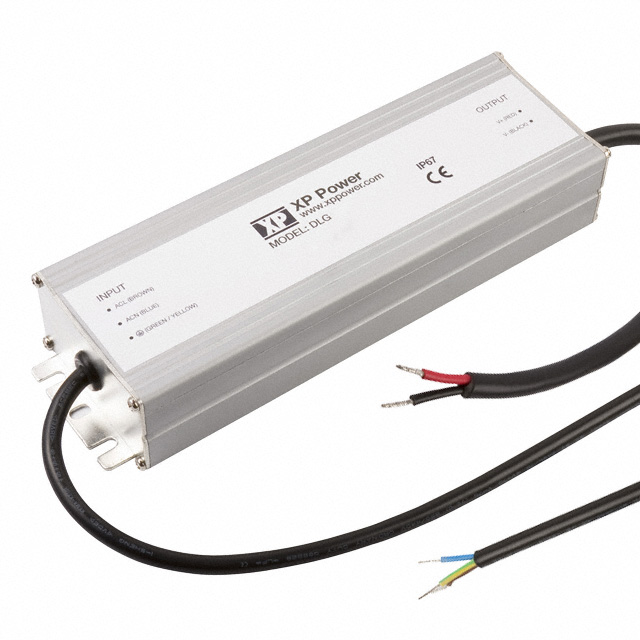

DLG75PS36
ObsoleteXP POWER
LED DRIVER CC/CV AC/DC 36V 2.1A
Deep-Dive with AI
Search across all available documentation for this part.
DLG75PS36
ObsoleteXP POWER
LED DRIVER CC/CV AC/DC 36V 2.1A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLG75PS36 |
|---|---|
| Approval Agency | IEC, CE, EN, UL |
| Current - Output (Max) [Max] | 2.1 A |
| Efficiency | 88 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 176 mm |
| Size / Dimension [x] | 6.93 in |
| Size / Dimension [y] | 2.68 " |
| Size / Dimension [y] | 68 mm |
| Size / Dimension [z] | 39 mm |
| Size / Dimension [z] | 1.54 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output | 36 V |
| Weight | 907.2 g |
| Weight | 2 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DLG75 Series
2.1A 36V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
