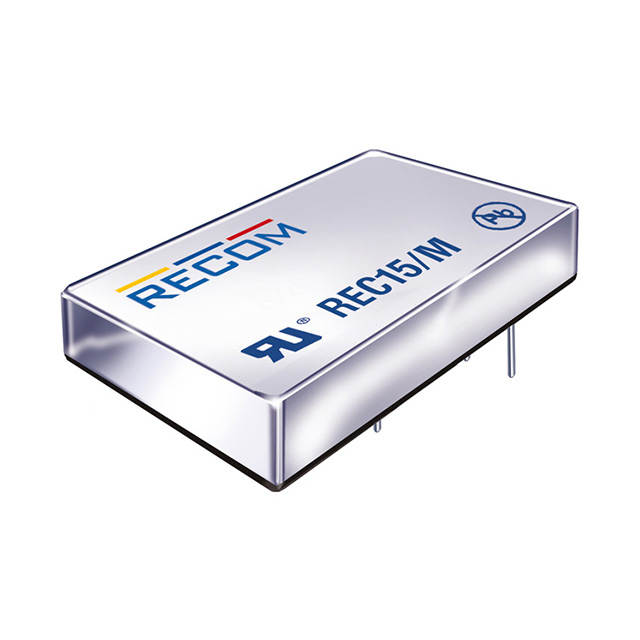

REC15-243.4SZ/H3/M/X2

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15W 9-36VIN 3.4VOUT 3A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REC15-243.4SZ/H3/M/X2

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15W 9-36VIN 3.4VOUT 3A

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC15-243.4SZ/H3/M/X2

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	3 A
Efficiency	85 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	3000 V
Voltage - Output 1	3.4 V

REC15-S_D(Z)/M Series

Isolated DC/DC Converters - Through Hole 15W 9-18Vin +/-15Vout 500mA

Part	Voltage - Input (Min) [Min]	Features	Package / Case	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Voltage - Input (Max) [Max]	Type	Efficiency	Number of Outputs	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Control Features
RECOM Power REC15-2412S/H2/M/X2	18 V	SCP	5-DIP Module	2000 V	1.25 A	ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	36 V	Isolated Module	86 %	1	12 V	-40 °C	100 °C	15 W
RECOM Power REC15-2405D/H2/M/X2	18 V	SCP	6-DIP Module	2000 V		ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	36 V	Isolated Module	83 %	2	5 V	-40 °C	100 °C	15 W	-5 V	1.5 A	1.5 A
RECOM Power REC15-483.4SZ/H3/M	18 V	OCP Remote On/Off SCP UVLO	6-DIP Module	3000 V	3 A	ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	75 V	Isolated Module	85 %	1	3.4 V	-40 °C	65 °C	15 W				Active High Enable
RECOM Power REC15-1215S/H2/M/X2	9 V	SCP	5-DIP Module	2000 V	1 A	ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	18 V	Isolated Module	86 %	1	15 V	-40 °C	100 °C	15 W
RECOM Power REC15-4812D/H3/M/X2	18 V	SCP	6-DIP Module	3000 V		ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	75 V	Isolated Module	86 %	2	12 V	-40 °C	100 °C	15 W	-12 V	625 mA	625 mA
RECOM Power REC15-485.1S/H2/M	36 V	OCP Remote On/Off SCP UVLO	6-DIP Module	2000 V	3 A	ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	75 V	Isolated Module	87 %	1	5.1 V	-40 °C	71 °C	15 W				Active High Enable
RECOM Power REC15-245.1S/H2/M	18 V	OCP Remote On/Off SCP UVLO	6-DIP Module	2000 V	3 A	ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	36 V	Isolated Module	87 %	1	5.1 V	-40 °C	71 °C	15 W				Active High Enable
RECOM Power REC15-4812DZ/H3/M	18 V	OCP Remote On/Off SCP UVLO	6-DIP Module	3000 V		ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	75 V	Isolated Module	86 %	2	12 V	-40 °C	65 °C	15 W	-12 V	625 mA	625 mA	Active High Enable
RECOM Power REC15-243.4SZ/H3/M/X2	18 V	SCP	5-DIP Module	3000 V	3 A	ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	36 V	Isolated Module	85 %	1	3.4 V	-40 °C	90 °C	10 W
RECOM Power REC15-4805D/H2/M/X2	18 V	SCP	6-DIP Module	2000 V		ITE (Commercial) Medical	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	75 V	Isolated Module	83 %	2	5 V	-40 °C	100 °C	15 W	-5 V	1.5 A	1.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 65.32
Sager	N/A	1	$ 68.44
		5	$ 66.24
		10	$ 63.17
		25	$ 61.28
		50	$ 60.39
		100	$ 58.66
		250	$ 54.76

Description

General part information

REC15-S_D(Z)/M Series

Isolated DC/DC Converters - Through Hole 15W 9-18Vin +/-15Vout 500mA

Documents

Technical documentation and resources

Datasheet

Document
