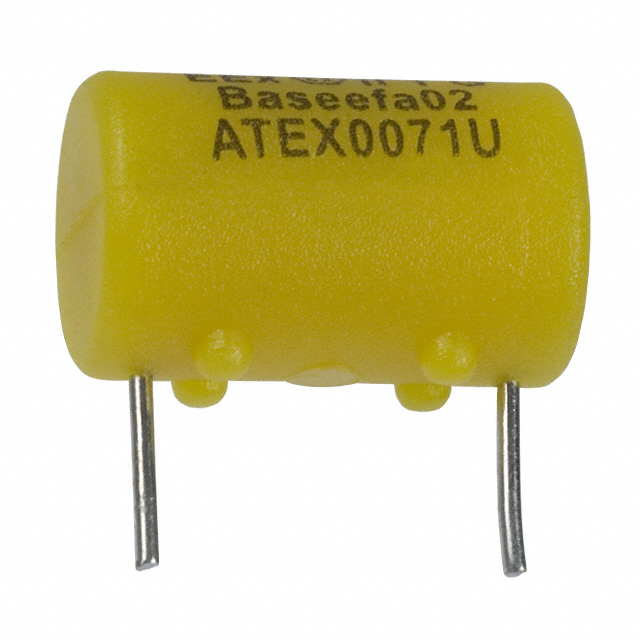

0259.375T - 259 Series

0259.375T

Active
Littelfuse/Commercial Vehicle Products

ELECTRIC FUSE, 0.375A, 125VAC, 125VDC, 50A (IR), THROUGH HOLE, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+5
0259.375T - 259 Series

0259.375T

Active
Littelfuse/Commercial Vehicle Products

ELECTRIC FUSE, 0.375A, 125VAC, 125VDC, 50A (IR), THROUGH HOLE, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheetDatasheet+5

Technical Specifications

Parameters and characteristics for this part

Specification0259.375T
ApplicationsHazardous Locations
Approval AgencyBaseefa, UR
Breaking Capacity @ Rated Voltage300 A, 50 A
Current Rating (Amps)375 mA
DC Cold Resistance0.395 Ohms
FeaturesIntrinsically Safe
Fuse TypeBoard Mount
Melting I²t0.025
Mounting TypeThrough Hole
Operating Temperature [Max]90 °C
Operating Temperature [Min]-55 °C
Package / CaseHorizontal, Radial, Can
Response TimeFast Blow
Size / Dimension [diameter]8 mm
Size / Dimension [diameter]0.315 "
Size / Dimension [x]13 mm
Size / Dimension [x]0.512 in
Voltage Rating - AC125 VAC
Voltage Rating - DC125 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 6.63
5$ 6.39
10$ 6.16
50$ 4.73
100$ 4.02
250$ 3.79
500$ 3.31
1000$ 3.25
NewarkEach 1$ 6.78
25$ 5.19
100$ 3.97
250$ 3.58
500$ 3.41
1000$ 3.33

Description

General part information

0259.375 Series

FUSE 125V IN SAFE HAZ LOC UL913 .375A
