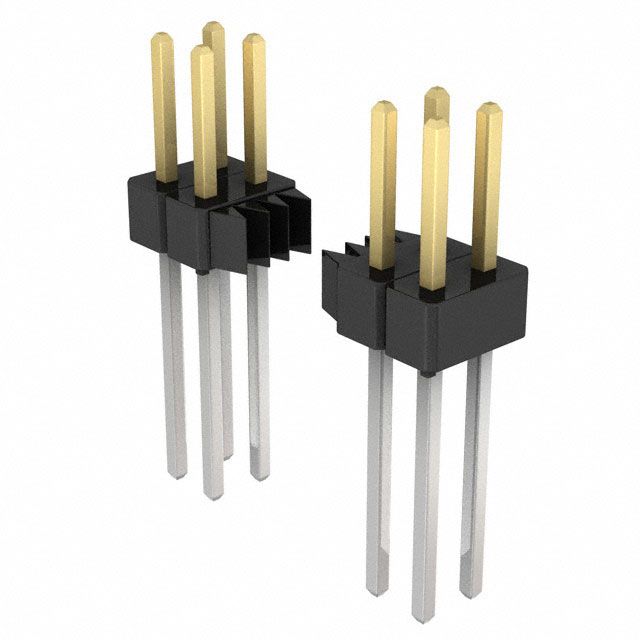

PZC31DADN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 62POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSquare Post Header Datasheet

PZC31DADN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 62POS 2.54MM

Deep-Dive with AI

DocumentsSquare Post Header Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PZC31DADN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	10.67 mm
Contact Length - Post [x]	0.42 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	62
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.75 in
Overall Contact Length	19.05 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PZC31 Series

Part	Fastening Type	Contact Type	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Overall Contact Length	Overall Contact Length	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Connector Type	Insulation Color	Current Rating (Amps)	Contact Finish - Mating	Contact Material	Contact Finish - Post	Number of Rows	Shrouding	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PZC31SFCN	Push-Pull	Male Pin	0.1 in	2.54 mm	0.318 "	8.08 mm	All	UL94 V-0	0.32 in	8.13 mm	Solder	31	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole	0.738 "	18.75 mm	Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	1	Unshrouded
Sullins Connector Solutions PZC31SAFN	Push-Pull	Male Pin	0.1 in	2.54 mm	0.23 in		All	UL94 V-0			Solder	31	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole	0.95 in	24.13 mm	Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	1	Unshrouded	0.62 in	15.75 mm	5.84 mm
Sullins Connector Solutions PZC31SFAN	Push-Pull	Male Pin	0.1 in	2.54 mm	0.318 "	8.08 mm	All	UL94 V-0	0.12 in	3.05 mm	Solder	31	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole	0.538 "	13.67 mm	Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	1	Unshrouded
Sullins Connector Solutions PZC31DADN	Push-Pull	Male Pin	0.1 in	2.54 mm	0.23 in		All	UL94 V-0	0.42 in	10.67 mm	Solder	62	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole	0.75 in	19.05 mm	Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	2	Unshrouded			5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PZC31SGAN	Push-Pull	Male Pin	0.14 in	3.56 mm	0.318 "	8.08 mm	All	UL94 V-0	0.12 in	3.05 mm	Solder	31	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole Right Angle			Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	1	Unshrouded
Sullins Connector Solutions PZC31DAEN	Push-Pull	Male Pin	0.1 in	2.54 mm	0.23 in		All	UL94 V-0			Solder	62	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole	0.85 in	21.59 mm	Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	2	Unshrouded	0.52 "	13.21 mm	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PZC31DFEN	Push-Pull	Male Pin	0.1 in	2.54 mm	0.318 "	8.08 mm	All	UL94 V-0			Solder	62	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole	0.938 in	23.83 mm	Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	2	Unshrouded	0.52 "	13.21 mm		2.54 mm	0.1 in
Sullins Connector Solutions PZC31SAEN	Push-Pull	Male Pin	0.1 in	2.54 mm	0.23 in		All	UL94 V-0			Solder	31	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole	0.85 in	21.59 mm	Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	1	Unshrouded	0.52 "	13.21 mm	5.84 mm
Sullins Connector Solutions PZC31DBDN	Push-Pull	Male Pin	0.24 in	6.1 mm	0.23 in		All	UL94 V-0	0.42 in	10.67 mm	Solder	62	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole Right Angle			Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	2	Unshrouded			5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PZC31DAAN	Push-Pull	Male Pin	0.1 in	2.54 mm	0.23 in		All	UL94 V-0	0.12 in	3.05 mm	Solder	62	2.54 µm	100 µin	Polyester Thermoplastic	0.1 in	2.54 mm	Through Hole	0.45 "	11.43 mm	Board to Board Cable	10 çin	0.25 çm	Square	Header	Black	3 A	Gold	Copper Alloy	Tin	2	Unshrouded			5.84 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PZC31 Series

Connector Header Through Hole 62 position 0.100" (2.54mm)
