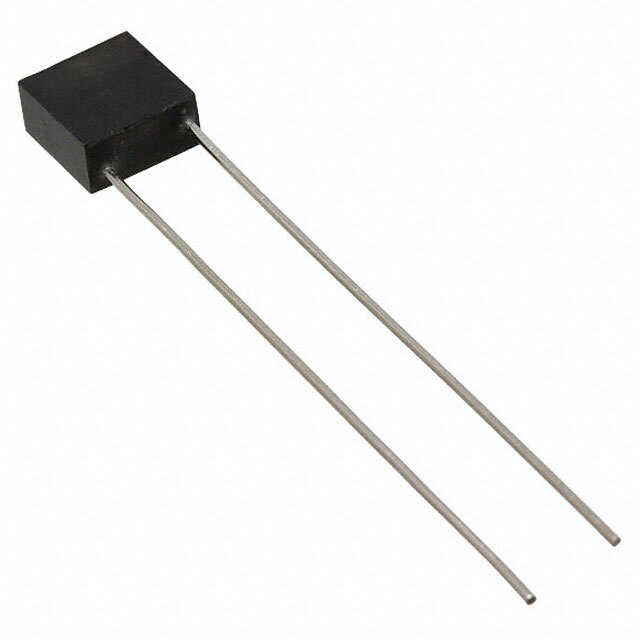

VRR40L254KGS

Active

KEMET

CAP CER 0.25UF 500V X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 0.25UF 500V X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	VRR40L254KGS

Applications	General Purpose
Capacitance	0.25 µF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	0.4 in
Height - Seated (Max) [Max] [z]	10.16 mm
Lead Spacing	6.35 mm
Lead Spacing	0.25 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.35 in
Size / Dimension [x]	8.89 mm
Size / Dimension [y]	6.98 mm
Size / Dimension [y]	0.275 in
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	500 V

Part	Mounting Type	Lead Spacing	Lead Spacing	Features	Lead Style	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Temperature Coefficient	Capacitance	Package / Case
KEMET VRR40L254KGS	Through Hole	6.35 mm	0.25 in	High Temperature High Voltage	Straight	10 %	-55 °C	200 °C	General Purpose	6.98 mm	0.35 in	8.89 mm	0.275 in	0.4 in	10.16 mm	500 V	X7R	0.25 µF	Radial
KEMET VRR40L274KGS	Through Hole	6.35 mm	0.25 in	High Temperature High Voltage	Straight	10 %	-55 °C	200 °C	General Purpose	6.98 mm	0.35 in	8.89 mm	0.275 in	0.4 in	10.16 mm	500 V	X7R	0.27 µF	Radial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.25 µF ±10% 500V Ceramic Capacitor X7R Radial
