NFL18ZT507H1A3D
ActiveMurata Power Solutions Inc.

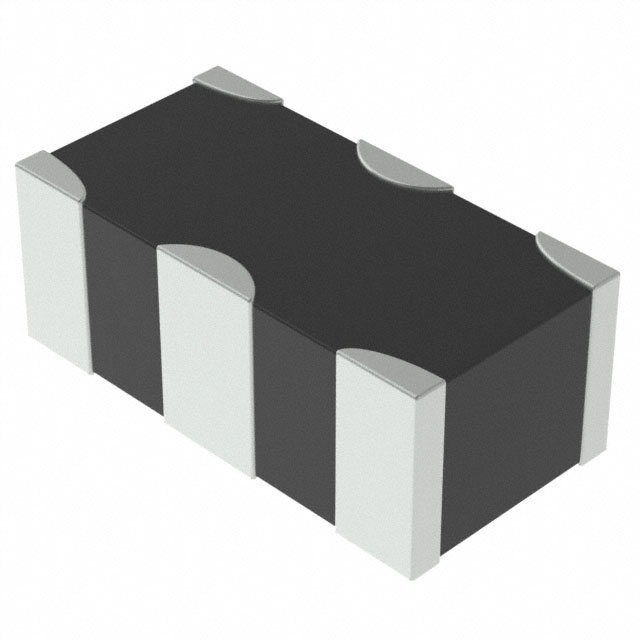

FILTR LC(T) 42NH/10PF 500MHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
NFL18ZT507H1A3D
ActiveMurata Power Solutions Inc.
FILTR LC(T) 42NH/10PF 500MHZ SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NFL18ZT507H1A3D |
|---|---|
| Applications | General Purpose |
| Center / Cutoff Frequency | 500 MHz |
| Current | 100 mA |
| ESD Protection | False |
| Filter Order | 3 |
| Height [z] | 0.7 mm |
| Height [z] | 0.028 in |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 |
| Package / Case | 3 Lead |
| Package / Case | 1608 Metric |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Technology | LC (T-Type) |
| Type | Low Pass |
| Values | 42 nH, 10 pF |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.74 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.74 | ||
| 10 | $ 0.61 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.40 | |||
| Tape & Reel (TR) | 4000 | $ 0.36 | ||
| 8000 | $ 0.34 | |||
| 12000 | $ 0.33 | |||
| 20000 | $ 0.32 | |||
| 28000 | $ 0.31 | |||
Description
General part information
NFL18ZT Series
LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel L = 42nH, C = 10pF 100 mA 0603 (1608 Metric), 3 PC Pad
