Technical Specifications
Parameters and characteristics for this part
| Specification | CP22-TO220-16-11.4-5.8-0.45 |
|---|---|
| Color | Gray |
| Material | Silicone |
| Outline [x] | 16 mm |
| Outline [y] | 11.4 mm |
| Outline [z] | 5.8 mm |
| Shape | Rectangular |
| Shelf Life | 24 Months |
| Thermal Conductivity | 1.9 W/m-K |
| Thickness | 0.45 mm |
| Thickness | 0.0177 in |
| Type | Interface Cap |
| Usage | TO-220 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10000 | $ 0.23 | |
Description
General part information
CP22-T Series

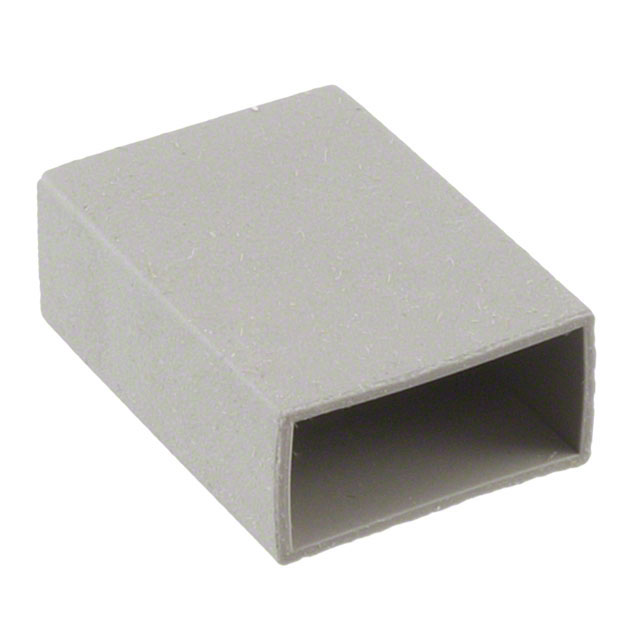

Thermal Pad Gray 16.00mm x 11.40mm x 5.80mm Rectangular
Documents
Technical documentation and resources
