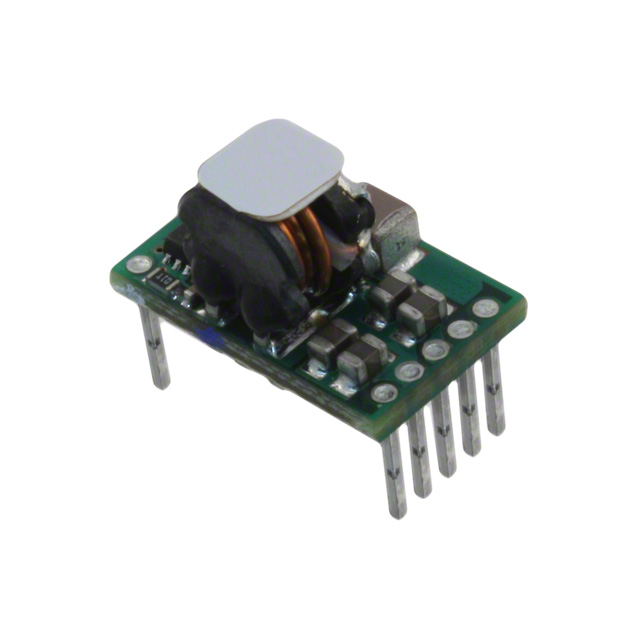

LDO10C-005W05-HJ
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 0.59-5.1V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDO10C-005W05-HJ
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 0.59-5.1V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDO10C-005W05-HJ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 94 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 16.5 mm |
| Size / Dimension [x] | 0.65 in |
| Size / Dimension [y] | 10.4 mm |
| Size / Dimension [y] | 0.41 in |
| Size / Dimension [z] | 13.1 mm |
| Size / Dimension [z] | 0.52 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.8 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 [Max] | 5.1 V |
| Voltage - Output 1 [Min] | 0.59 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.55 | |
| 5 | $ 16.42 | |||
| 10 | $ 16.30 | |||
| 25 | $ 16.05 | |||
| 40 | $ 15.55 | |||
| 90 | $ 14.04 | |||
| 270 | $ 13.79 | |||
| 450 | $ 13.54 | |||
Description
General part information
LDO10C Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.59 ~ 5.1V 10A 3V - 13.8V Input
