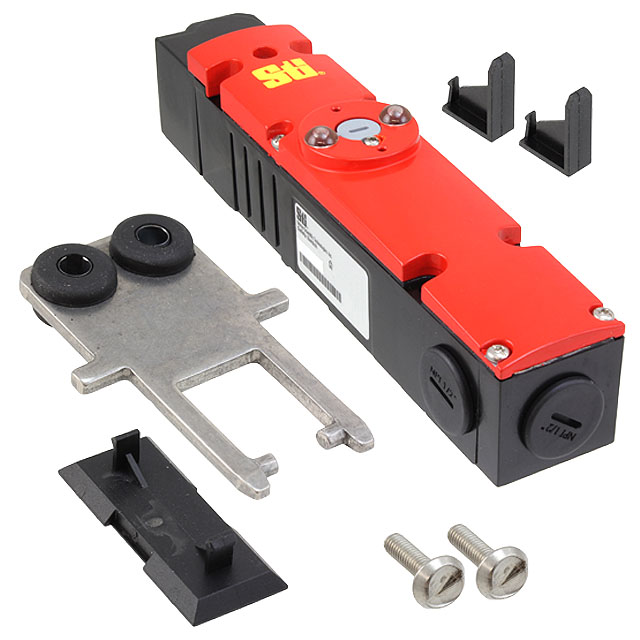

TL4024-10242TM
ActiveOmron Electronics Inc-EMC Div
INTERLOCK SOLENOID RELEASE 4PST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TL4024-10242TM
ActiveOmron Electronics Inc-EMC Div
INTERLOCK SOLENOID RELEASE 4PST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TL4024-10242TM |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | cULus, CE |
| Circuit | 4PST-3NC/1NO (DB/DM) |
| Conduit Thread Size | 0.5 in |
| Current Rating (Amps) | 4 A |
| Holding Force | 153 kgf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Termination Style | Screw Terminal |
| Type | Solenoid Release |
| Voltage - Supply | 24 VAC |
| Voltage Rating | 230 VAC, 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 607.82 | |
| 5 | $ 598.75 | |||
| 10 | $ 562.46 | |||
Description
General part information
TL4024 Series
INTERLOCK SOLENOID RELEASE 4PST
