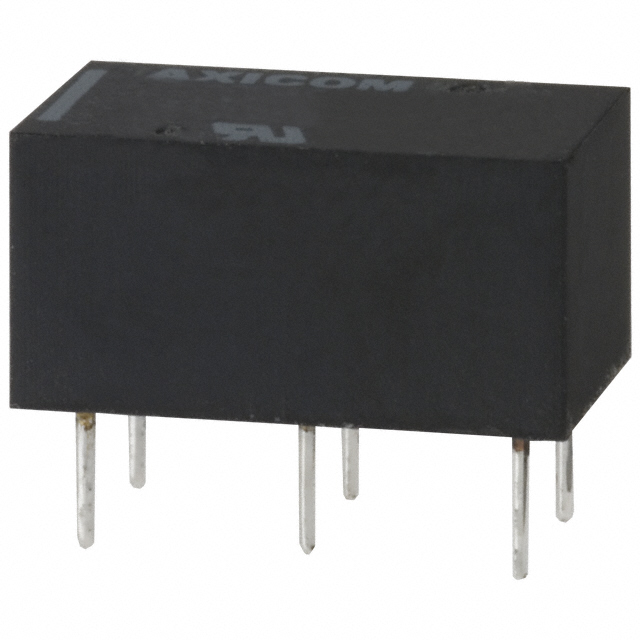

V23026A1005B201

Active

TE Connectivity Potter & Brumfield Relays

RELAY GENERAL PURPOSE SPDT 1A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V23026A1005B201

Active

TE Connectivity Potter & Brumfield Relays

RELAY GENERAL PURPOSE SPDT 1A 9V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23026A1005B201

Coil Current	7.8 mA
Coil Resistance	1.17 kOhms
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Rhodium (Rh), Gold (Au), Palladium Nickel (PdNi)
Contact Rating (Current)	1 A
Load - Max Switching	125 W, 150 VA
Mounting Type	Through Hole
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.9 VDC
Operate Time	2 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	2 ms
Switching Voltage	125 VDC, 150 VAC
Termination Style	PC Pin

1393774 Series

Part	Load - Max Switching	Termination Style	Must Operate Voltage	Operate Time	Coil Resistance	Contact Form	Contact Material	Coil Type	Switching Voltage	Must Release Voltage	Relay Type	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Contact Rating (Current)	Mounting Type	Coil Voltage
TE Connectivity Potter & Brumfield Relays V23026A1006B201	125 W 150 VA	PC Pin	2.25 VDC	2 ms	137 Ohms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Non Latching	125 VDC 150 VAC	0.3 VDC	General Purpose	22 mA	85 °C	-40 °C	2 ms	1 A	Through Hole
TE Connectivity Potter & Brumfield Relays V23026A1001B201	125 W 150 VA	PC Pin	3.75 VDC	2 ms	370 Ohms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Non Latching	125 VDC 150 VAC	0.5 VDC	General Purpose		85 °C	-40 °C	2 ms	1 A	Through Hole	5 VDC
TE Connectivity Potter & Brumfield Relays V23026A1005B201	125 W 150 VA	PC Pin	6.75 VDC	2 ms	1.17 kOhms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Non Latching	125 VDC 150 VAC	0.9 VDC	General Purpose	7.8 mA	85 °C	-40 °C	2 ms	1 A	Through Hole	9 VDC
TE Connectivity Potter & Brumfield Relays V23026B1101B201	125 W 150 VA	PC Pin	3.75 VDC	2 ms	390 Ohms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Latching Dual Coil	125 VDC 150 VAC		General Purpose	12.8 mA	85 °C	-40 °C	2 ms	1 A	Through Hole	5 VDC
TE Connectivity Potter & Brumfield Relays V23026C1051B201	125 W 150 VA	PC Pin	3.75 VDC	2 ms	740 Ohms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Latching Single Coil	125 VDC 150 VAC		General Purpose	6.8 mA	85 °C	-40 °C	2 ms	1 A	Through Hole	5 VDC
TE Connectivity Potter & Brumfield Relays V23026C1056B201	125 W 150 VA	PC Pin	2.25 VDC	2 ms	300 Ohms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Latching Single Coil	125 VDC 150 VAC		General Purpose	10 mA	85 °C	-40 °C	2 ms	1 A	Through Hole
TE Connectivity Potter & Brumfield Relays V23026C1057B201	125 W 150 VA	PC Pin	1.13 VDC	2 ms	61 Ohms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Latching Single Coil	125 VDC 150 VAC		General Purpose	24.7 mA	85 °C	-40 °C	2 ms	1 A	Through Hole	1.5 VDC
TE Connectivity Potter & Brumfield Relays V23026C1055B201	125 W 150 VA	PC Pin	6.75 VDC	2 ms	2.16 kOhms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Latching Single Coil	125 VDC 150 VAC		General Purpose	4.2 mA	85 °C	-40 °C	2 ms	1 A	Through Hole	9 VDC
TE Connectivity Potter & Brumfield Relays V23026A1007B201	125 W 150 VA	PC Pin	1.13 VDC	2 ms	36 Ohms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Non Latching	125 VDC 150 VAC	0.15 VDC	General Purpose	42 mA	85 °C	-40 °C	2 ms	1 A	Through Hole	1.5 VDC
TE Connectivity Potter & Brumfield Relays V23026F1052B201	125 W 150 VA	Gull Wing	9 VDC	2 ms	4.5 kOhms	SPDT (1 Form C)	Gold (Au) Palladium Nickel (PdNi) Rhodium (Rh)	Latching Single Coil	125 VDC 150 VAC		General Purpose	2.7 mA	85 °C	-40 °C	2 ms	1 A	Surface Mount	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 6.99

Description

General part information

1393774 Series

General Purpose Relay SPDT (1 Form C) Through Hole
