TG-A1450-160-160-1.0

Obsolete

t-Global Technology

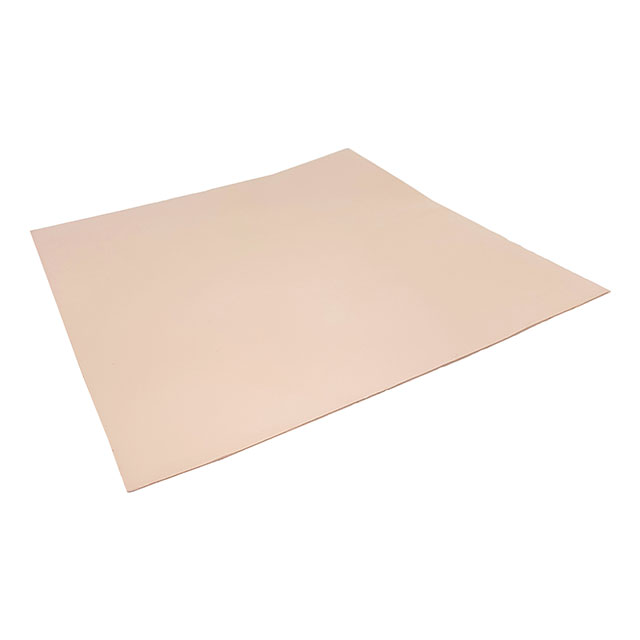

THERM PAD 160MMX160MM RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermal Pad Tolerance Datasheet

TG-A1450-160-160-1.0

Obsolete

t-Global Technology

THERM PAD 160MMX160MM RED

Deep-Dive with AI

DocumentsThermal Pad Tolerance Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TG-A1450-160-160-1.0

Color	Red
Material	Silicone
Outline [x]	160 mm
Outline [y]	160 mm
Shape	Square
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Thermal Conductivity	14.5 W/m-K
Thickness	0.0394 in
Thickness	1 mm
Type	Gap Filler Pad, Sheet
Usage	Multi

TG-A1450 Series

Part	Shape	Color	Thermal Conductivity	Type	Shelf Life	Usage	Material	Shelf Life Start	Outline [x]	Outline [y]	Thickness	Thickness
t-Global Technology TG-A1450-5-5-0.5	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	5 mm	5 mm	0.0197 in	0.5 mm
t-Global Technology TG-A1450-15-15-1.5	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	15 mm	15 mm	0.0591 "	1.5 mm
t-Global Technology TG-A1450-25-25-2.0	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	25 mm	25 mm	0.079 in	2 mm
t-Global Technology TG-A1450-20-20-2.0	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	20 mm	20 mm	0.079 in	2 mm
t-Global Technology TG-A1450-10-10-1.5	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	10 mm	10 mm	0.0591 "	1.5 mm
t-Global Technology TG-A1450-15-15-1.0	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	15 mm	15 mm	0.0394 in	1 mm
t-Global Technology TG-A1450-100-100-1.0	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	100 mm	100 mm	0.0394 in	1 mm
t-Global Technology TG-A1450-160-160-1.0	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	160 mm	160 mm	0.0394 in	1 mm
t-Global Technology TG-A1450-100-100-1.5	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	100 mm	100 mm	0.0591 "	1.5 mm
t-Global Technology TG-A1450-325-325-2.0	Square	Red	14.5 W/m-K	Gap Filler Pad Sheet	24 Months	Multi	Silicone	Date of Manufacture	325 mm	325 mm	0.079 in	2 mm
