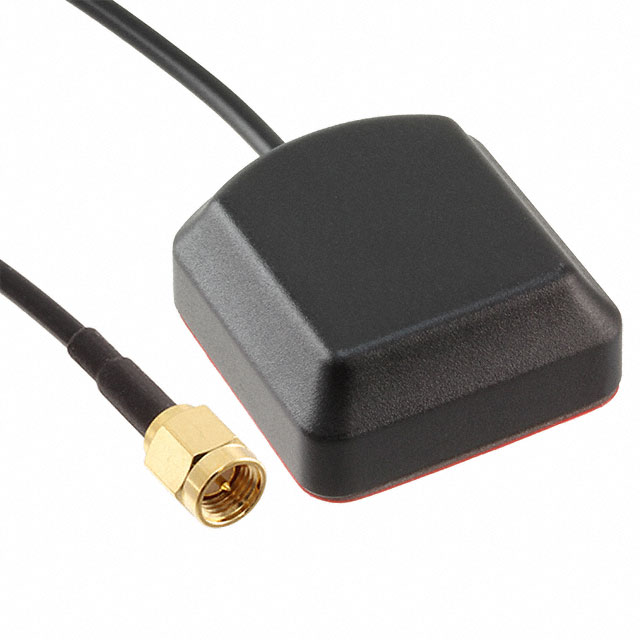

ALPHA4A/1M/SMAM/S/S/26
ActiveSiretta Ltd
RF ANT 1.575GHZ MOD SMA MALE ADH
Deep-Dive with AI
Search across all available documentation for this part.
ALPHA4A/1M/SMAM/S/S/26
ActiveSiretta Ltd
RF ANT 1.575GHZ MOD SMA MALE ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALPHA4A/1M/SMAM/S/S/26 |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Gain | 26 dBi |
| Height (Max) [Max] | 13 mm |
| Height (Max) [Max] | 0.512 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.66 | |
| 10 | $ 19.06 | |||
| 25 | $ 18.20 | |||
| 100 | $ 16.27 | |||
| 250 | $ 15.52 | |||
| 500 | $ 14.77 | |||
Description
General part information
ALPHA4 Series
RF ANTENNA GPS Module SMA Male Adhesive
