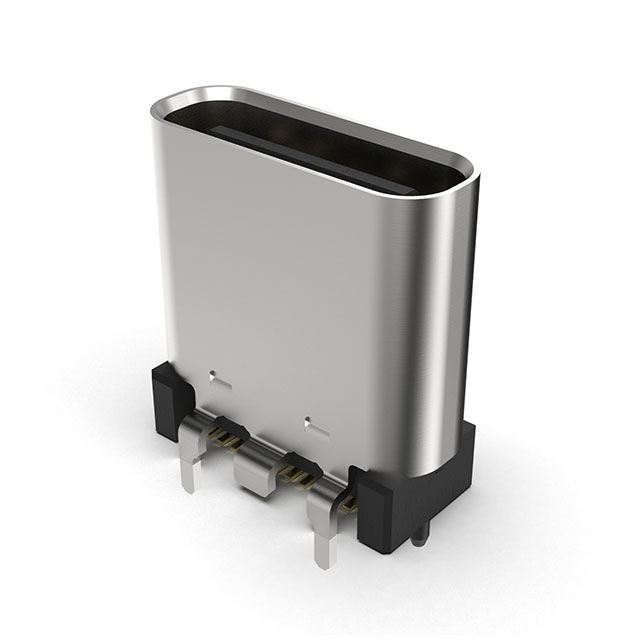

USB4115-03-C - USB4115-03-C

USB4115-03-C

Active
GCT

CONN USB3.1 TYPE-C VERT SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUSB4115-03-C SpecUSB Type C Selection Guide+1
USB4115-03-C - USB4115-03-C

USB4115-03-C

Active
GCT

CONN USB3.1 TYPE-C VERT SOCKET

Deep-Dive with AI

DocumentsUSB4115-03-C SpecUSB Type C Selection Guide+1

Technical Specifications

Parameters and characteristics for this part

SpecificationUSB4115-03-C
Connector TypeUSB-C (USB TYPE-C)
Contact FinishGold
Current Rating (Amps)5 A
FeaturesBoard Guide, Solder Retention Tab
GenderReceptacle
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mating Cycles20000
Mounting FeatureVertical
Mounting TypeSurface Mount, Through Hole
Number of Contacts24
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Shell/Shielding MaterialSteel (SUS304)
ShieldingShielded
SpecificationsUSB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
TerminationSolder
Voltage - Rated [custom]48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.12
10$ 0.94
25$ 0.90
50$ 0.89
100$ 0.85
Tape & Reel (TR) 450$ 0.69
900$ 0.67
1350$ 0.62
2250$ 0.58
3150$ 0.56
11250$ 0.51

Description

General part information

USB4115 Series

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Through Hole
