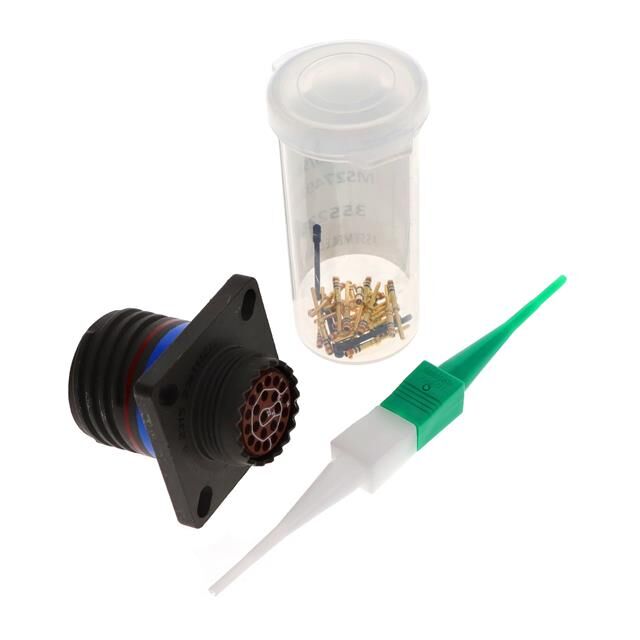

D38999/20ZB99SC

Active

Conesys

AE3 7C 7#20 SKT RECP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20ZB99SC

Active

Conesys

AE3 7C 7#20 SKT RECP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20ZB99SC

Applications	Aerospace, Military, Marine
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Grade	Military
Ingress Protection	Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Orientation	C
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Black Zinc Nickel
Shell Size - Insert	11-99
Shell Size, MIL	B
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

D38999/20ZB Series

Part	Grade	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Shell Finish	Primary Material	Connector Type	Contact Shape	Shell Size, MIL	Note	Type	Shell Material	Shell Size - Insert	Insert Material	Number of Positions	Orientation	Ingress Protection	Mounting Feature	Material Flammability Rating	Shielding	Housing Color	Contact Size	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Color	Contact Finish - Mating	Termination	Current Rating (Amps)	Voltage Rating	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Conesys D38999/20ZB98AC	Military	MIL-DTL-38999 Series III	-65 ░C	347 °F	Crimp	Black Zinc Nickel	Metal	Receptacle Housing	Circular	B	Contacts Not Included	For Male Pins	Composite	11-98	Thermoplastic	6	C	Waterproof	Flange	UL94 V-0	Shielded	Black	20
Conesys D38999/20ZB99SC	Military	MIL-DTL-38999 Series III	-65 ░C	125 °C		Black Zinc Nickel	Metal	Receptacle Female Sockets		B				11-99	Thermoplastic	7	C	Waterproof	Flange	UL94 V-0	Shielded			1.27 µm	50 µin	Aerospace Marine Military	Black	Gold	Crimp	7.5 A	500 VAC	Copper Alloy
Conesys D38999/20ZB5BA	Military	MIL-DTL-38999 Series III	-65 ░C	347 °F	Crimp	Black Zinc Nickel	Metal	Receptacle Housing	Circular	G	Contacts Not Included	For Female Sockets	Composite	11-5	Thermoplastic		A	Waterproof	Flange	UL94 V-0	Shielded	Black	20
Conesys D38999/20ZB35PC	Military	MIL-DTL-38999 Series III	-65 ░C	125 °C		Black Zinc Nickel	Metal	Male Pins Receptacle		B			Aluminum Alloy		Thermoplastic	13	C	Waterproof	Flange	UL94 V-0	Shielded			1.27 µm	50 µin	Aerospace Marine Military	Black	Gold	Crimp	5 A	500 VAC	Copper Alloy	11	35
Conesys D38999/20ZB2AD	Military	MIL-DTL-38999 Series III	-65 ░C	347 °F	Crimp	Black Zinc Nickel	Metal	Receptacle Housing	Circular	F	Contacts Not Included	For Male Pins	Aluminum Alloy	11-2	Thermoplastic	2	D	Waterproof	Flange	UL94 V-0	Shielded	Black	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 60.07
		25	$ 54.07
		50	$ 49.16

Description

General part information

D38999/20ZB Series

7 Position Circular Connector Receptacle, Female Sockets Crimp
