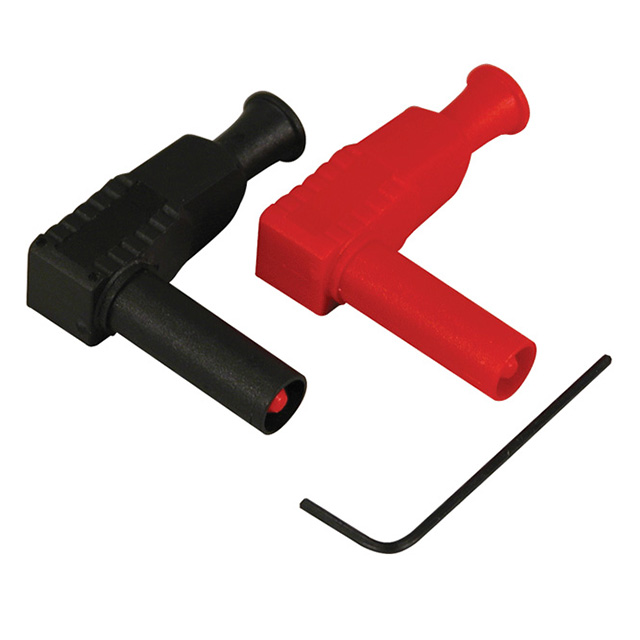

CT3204W

Active

Cal Test Electronics

CONN BANANA PLUG SOLDERLESS

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA PLUG SOLDERLESS

Technical Specifications

Parameters and characteristics for this part

Specification	CT3204W

Body Material	Polypropylene (PP)
Color	Black, Red
Contact Finish	Nickel
Contact Material	Beryllium Copper
Gender	Male
Insulation	Sheathed
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Banana Plug
Wire Gauge	12 AWG

Part	Body Material	Contact Finish	Wire Gauge	Contact Material	Type	Gender	Plug/Mating Plug Diameter	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Color	Insulation	Mounting Type
Cal Test Electronics CT3204W	Polypropylene (PP)	Nickel	12 AWG	Beryllium Copper	Banana Plug	Male	Standard Banana	-20 C	80 C	Solderless	Black Red	Sheathed	Free Hanging (In-Line) Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.40

General part information

Banana Plug Connector Standard Banana Solderless Black, Red
