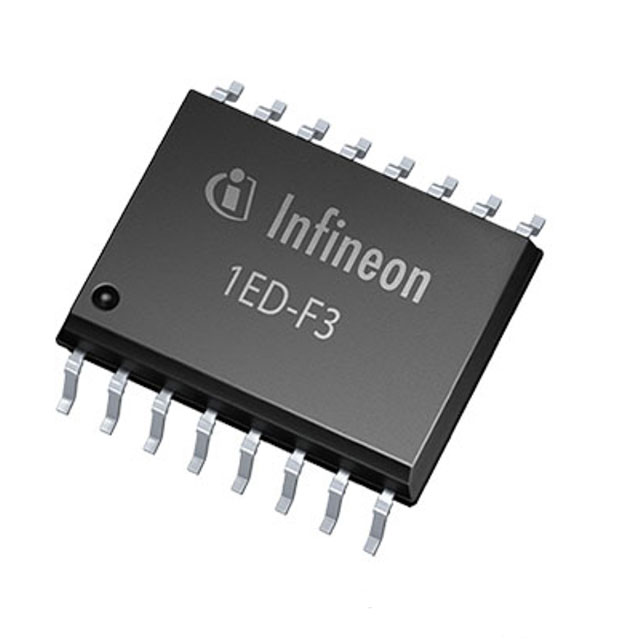

1ED3323MC12NXUMA1
ActiveTHE 1ED3323MC12N IS A 8.5 A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER (DSO-16 WIDE BODY PACKAGE)
Deep-Dive with AI
Search across all available documentation for this part.
1ED3323MC12NXUMA1
ActiveTHE 1ED3323MC12N IS A 8.5 A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER (DSO-16 WIDE BODY PACKAGE)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1ED3323MC12NXUMA1 |
|---|---|
| Approval Agency | UL |
| Common Mode Transient Immunity (Min) [Min] | 300 kV/µs |
| Current - Output High, Low | 8.5 A, 6 A |
| Current - Peak Output | 9 A |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Propagation Delay tpLH / tpHL (Max) [Max] [custom] | 92 ns |
| Propagation Delay tpLH / tpHL (Max) [Max] [custom] | 84 ns |
| Rise / Fall Time (Typ) [custom] | 15 ns |
| Rise / Fall Time (Typ) [custom] | 15 ns |
| Supplier Device Package | PG-DSO-16-40 |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 5700 Vrms |
| Voltage - Output Supply | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 3.15 | |
| 10 | $ 2.37 | |||
| Digikey | Cut Tape (CT) | 1 | $ 3.44 | |
| 10 | $ 3.09 | |||
| 25 | $ 2.92 | |||
| 100 | $ 2.53 | |||
| 250 | $ 2.40 | |||
| 500 | $ 2.15 | |||
| Digi-Reel® | 1 | $ 3.44 | ||
| 10 | $ 3.09 | |||
| 25 | $ 2.92 | |||
| 100 | $ 2.53 | |||
| 250 | $ 2.40 | |||
| 500 | $ 2.15 | |||
| Tape & Reel (TR) | 1000 | $ 1.80 | ||
| 2000 | $ 1.71 | |||
| 3000 | $ 1.66 | |||
| 5000 | $ 1.61 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 3.42 | |
| 10 | $ 2.36 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.24 | |||
| 100 | $ 2.17 | |||
| 250 | $ 2.06 | |||
| 500 | $ 1.99 | |||
| 1000 | $ 1.87 | |||
Description
General part information
1ED332 Series
EiceDRIVER™ Enhancedsingle-channelisolated gate driverwith +6 A / -8.5 A typical sourcing and sinking peak output current in a DSO-16 wide body package with 8 mm creepage forIGBTs,MOSFETsandSiC MOSFETs. 1ED3323MC12N belongs to the EiceDRIVER™ Enhanced 1ED332x family (F3 family). 1ED3323 offers short-circuit protection (DESAT) for IGBTs and SiC MOSFETs. The driver IC operates over a wide supply voltage range, either unipolar or bipolar and has tight part-to-part propagation delay matching.
