G832MB010606222HR

Active

Amphenol ICC (Commercial Products)

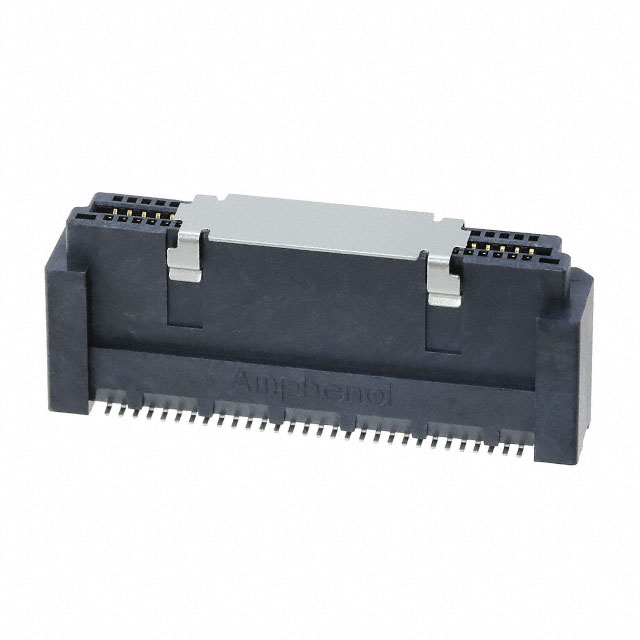

CONN RCPT 60POS SMD GOLD

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN RCPT 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	G832MB010606222HR

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board	0.461 in
Height Above Board	11.7 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Number of Rows	Height Above Board	Height Above Board	Height Above Board
Amphenol ICC (Commercial Products) G832MB010645222HR	Gold	0.8 mm	0.031 in	0.303 in	7.7 mm	Center Strip Contacts Receptacle	0.76 Ám	30 Áin	Surface Mount	64	2
Amphenol ICC (Commercial Products) G832MB010606222HR	Gold	0.8 mm	0.031 in			Center Strip Contacts Receptacle	0.76 Ám	30 Áin	Surface Mount	60	2	0.461 in	11.7 mm
Amphenol ICC (Commercial Products) G832MB010641222HR	Gold	0.8 mm	0.031 in			Center Strip Contacts Receptacle	0.76 Ám	30 Áin	Surface Mount	64	2	3.7 mm		0.146 in
Amphenol ICC (Commercial Products) G832MB010801222HR	Gold	0.8 mm	0.031 in			Center Strip Contacts Receptacle	0.76 Ám	30 Áin	Surface Mount	80	2	3.7 mm		0.146 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
