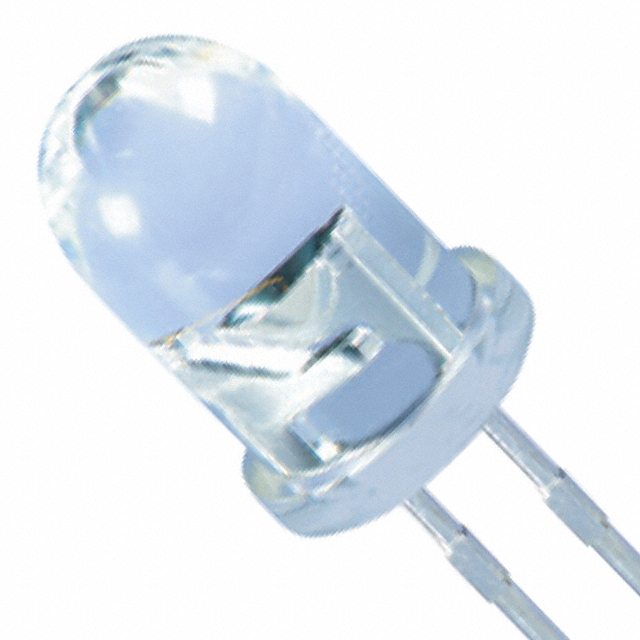

XLCGS12W
ActiveSunLED
LED BLUE-GREEN CLEAR T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLCGS12W
ActiveSunLED
LED BLUE-GREEN CLEAR T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLCGS12W |
|---|---|
| Color | Blue-Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 8.6 mm |
| Lens Color | Colorless |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 11990 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 (5mm) |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 505 nm |
| Wavelength - Peak | 505 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.18 | |
Description
General part information
XLCGS12 Series
Blue-Green 505nm LED Indication - Discrete 3.2V Radial
