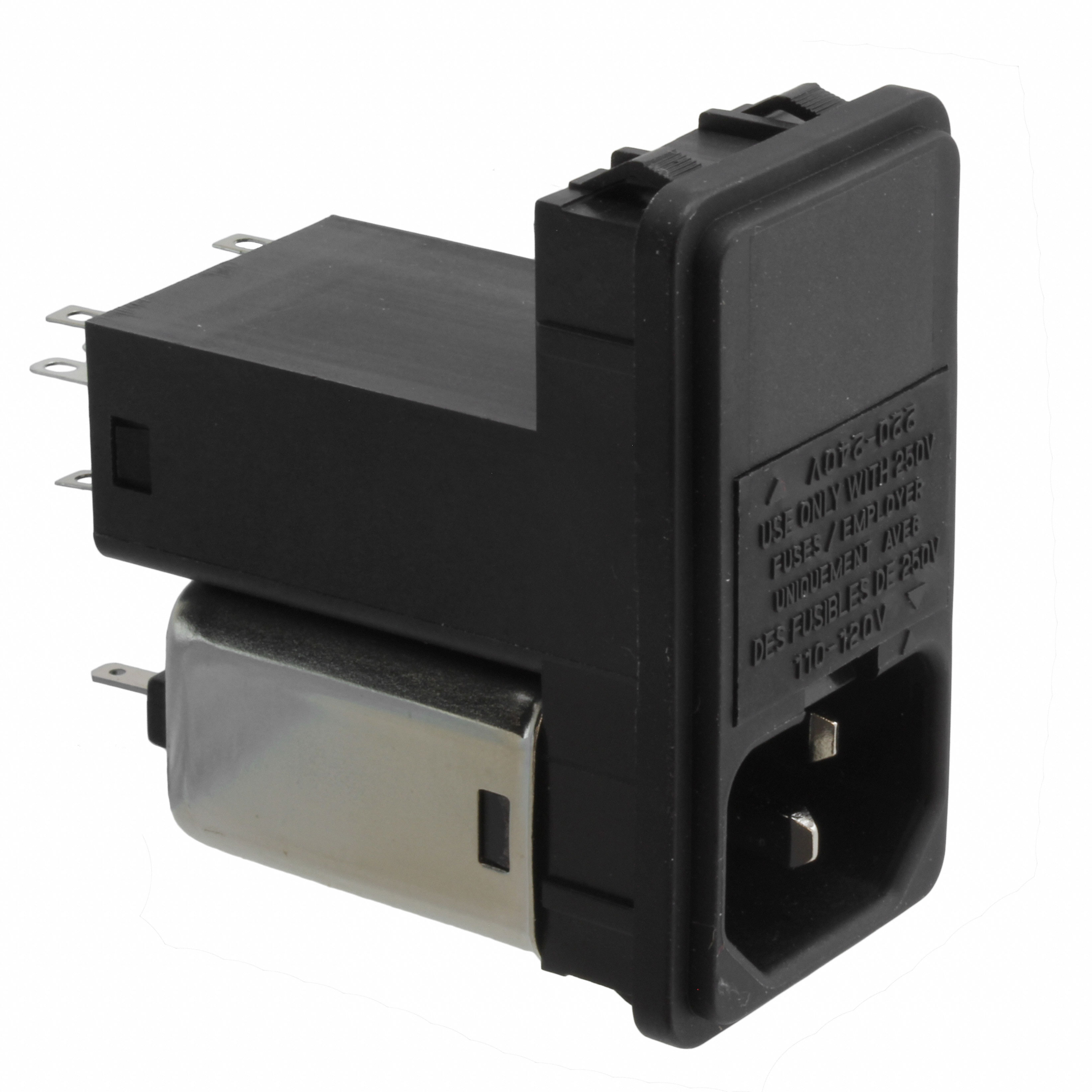

10NB4M

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	10NB4M

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size
Panel Thickness [Max]	0.126 in
Panel Thickness [Max]	3.2 mm
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Filter Type	Connector Style	Panel Cutout Dimensions	Connector Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Fuse Holder, Drawer	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Appliance Inlet	Current Rating - Filter	Approval Agency	Accomodates a Fuse	Mounting Type	Termination
Delta Electronics 10NB4M	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Variable Size	Receptacle Male Blades - Module	0.126 in	0.79 mm	3.2 mm	0.031 "	Fuse Holder Twin Fused	115 VAC	250 VAC	10 A	10 A	CSA UL VDE		Panel Mount Snap-In	Solder Eyelet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources
