2FA53-78/TABS

Active

Carling Technologies

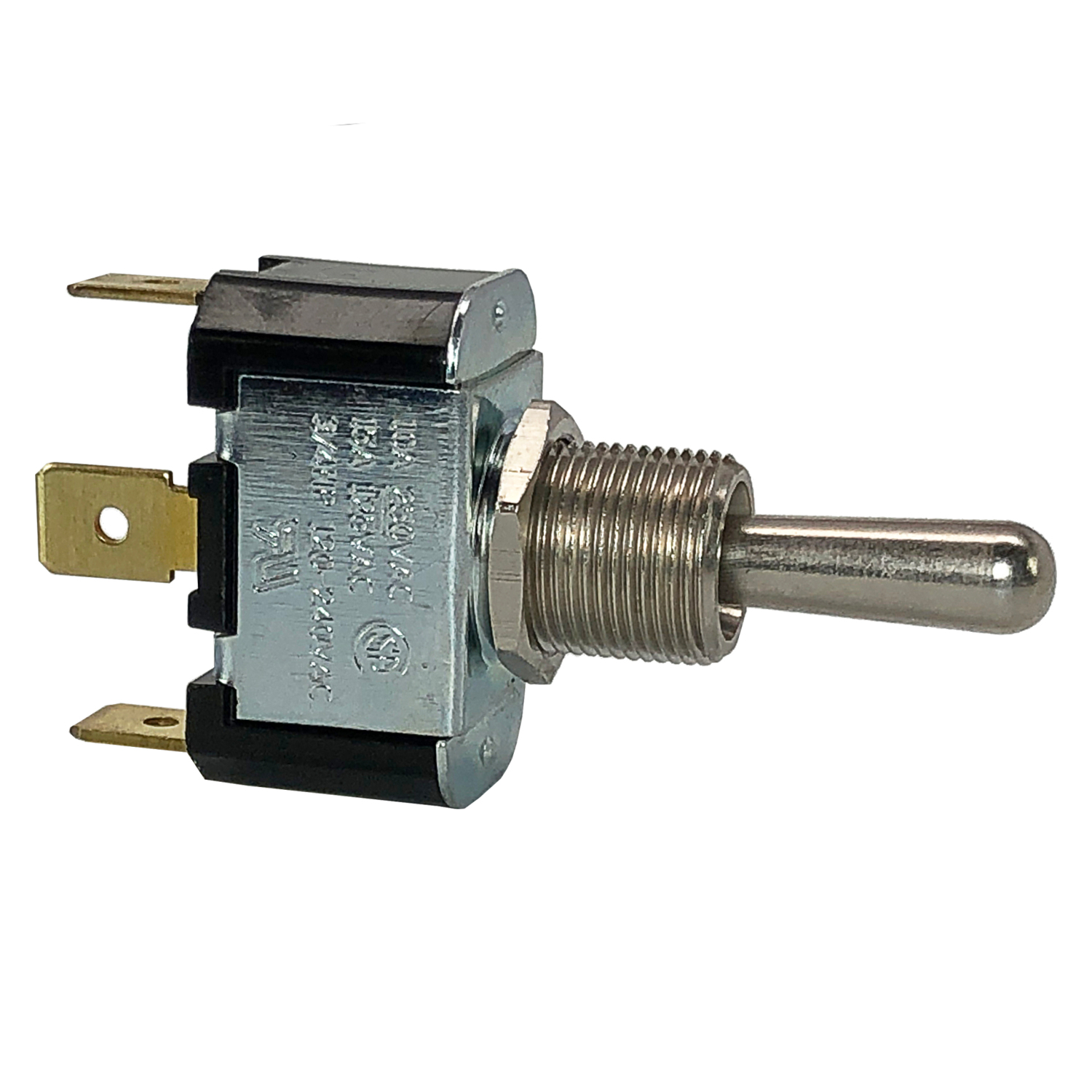

TOGGLE SWITCH, SEALED, ON-NONE-OFF, SPST, NON ILLUMINATED, F SERIES, PANEL MOUNT, 15 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

2FA53-78/TABS

Active

Carling Technologies

TOGGLE SWITCH, SEALED, ON-NONE-OFF, SPST, NON ILLUMINATED, F SERIES, PANEL MOUNT, 15 A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2FA53-78/TABS

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	15 A
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	65.6 °C
Operating Temperature [Min]	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

2FC53 Series

Toggle Switches

Part	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Circuit	Voltage Rating - AC	Switch Function	Actuator Length [x]	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Termination Style	Electrical Life	Actuator Type
Carling Technologies 2FA53-52	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPST	125 V	On-Off	10.31 mm	15 A	12.7 mm	Solder Lug	50000 Cycles	Standard Round
Carling Technologies 2FA53-78/TABS/HDW ASSM	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPST	125 V	On-Off	17.45 mm	15 A	12.7 mm	Quick Connect - 0.250" (6.3mm)	50000 Cycles	Standard Round
Carling Technologies 2FA53-63/TABS	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPST	125 V	On-Off	14.28 mm	15 A	12.7 mm	Quick Connect - 0.250" (6.3mm)	50000 Cycles	Standard Round
Carling Technologies 2FA53-73/END TABS	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPST	125 V	On-Off	17.45 mm	15 A	12.7 mm	Quick Connect - 0.250" (6.3mm)	50000 Cycles	Standard Round
Carling Technologies 2FA53-78/TABS/2 HEX	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPST	125 V	On-Off	17.45 mm	15 A	12.7 mm	Quick Connect - 0.250" (6.3mm)	50000 Cycles	Standard Round
Carling Technologies 2FC53-63	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPDT	125 V	On-Off-On	14.28 mm	15 A	12.7 mm	Solder Lug	50000 Cycles	Standard Round
Carling Technologies 2FA53-78/TABS	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPST	125 V	On-Off	17.45 mm	15 A	12.7 mm	Quick Connect - 0.250" (6.3mm)	50000 Cycles	Standard Round
Carling Technologies 2FA53-73/.187 TABS	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPST	125 V	On-Off	17.45 mm	15 A	12.7 mm	Quick Connect - 0.250" (6.3mm)	50000 Cycles	Standard Round
Carling Technologies 2FA53-73/TABS/HDW ASSM	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPST	125 V	On-Off	17.45 mm	15 A	12.7 mm	Quick Connect - 0.250" (6.3mm)	50000 Cycles	Standard Round
Carling Technologies 2FA53-78/.187 TABS	Non-Illuminated	65.6 °C	-17.8 °C	15/32-32	SPST	125 V	On-Off	17.45 mm	15 A	12.7 mm	Quick Connect - 0.250" (6.3mm)	50000 Cycles	Standard Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	13	$ 8.66
Newark	Each	10	$ 9.26
		25	$ 8.13
		50	$ 7.41
		100	$ 7.01
		250	$ 6.83

Description

General part information

2FC53 Series

Toggle Switches

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
