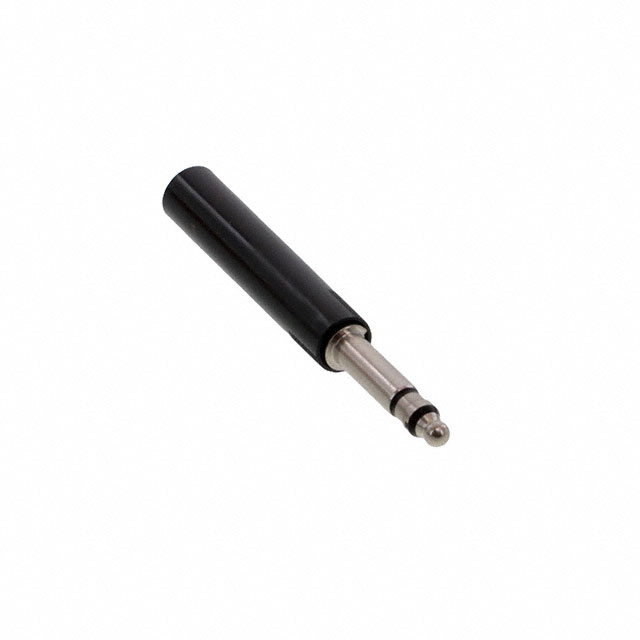

TT253N

Active

Switchcraft Inc.

PHONE CONNECTORS NICKEL PLTD TT PHONE

Search across all available documentation for this part.

Active

Switchcraft Inc.

PHONE CONNECTORS NICKEL PLTD TT PHONE

Technical Specifications

Parameters and characteristics for this part

Specification	TT253N

Body Color	Gold, Black
Connector Type	Phone Plug
Contact Material	Copper Alloy
Contact Material - Plating	Natural
Gender	Male
Housing Material	Thermoplastic
Includes	2 Screws, 2 Terminals, 1 Connector, 1 Handle
Industry Recognized Mating Diameter [diameter]	0.173 in
Industry Recognized Mating Diameter [diameter]	4.39 mm
Internal Switch(s)	False
Mating Length/Depth	0.87 "
Mating Length/Depth	22 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Shielding	Unshielded
Signal Lines	Stereo
Termination	Screw

Audio Cables / Video Cables / RCA Cables TWIN 3 COND PTCH CRD

Part	2nd Connector	1st Connector	Color	Shielding	Length [x]	Length [x]	Channels	Usage	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Signal Lines	Gender	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Mating Length/Depth	Mating Length/Depth	Mounting Type	Connector Type	Includes	Body Color	Contact Material	Termination	Housing Material	Internal Switch(s)	Contact Material - Plating
Switchcraft Inc. TT10RX	Bantam Plug	Bantam Plug	Red	Shielded	3.05 m	10 ft	3 Conductor	Patch
Switchcraft Inc. TT253N				Unshielded					3	3	Stereo	Male	0.173 in	4.39 mm	0.87 "	22 mm	Free Hanging (In-Line)	Phone Plug	1 Connector 1 Handle 2 Screws 2 Terminals	Black Gold	Copper Alloy	Screw	Thermoplastic		Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Audio Cables / Video Cables / RCA Cables TWIN 3 COND PTCH CRD
