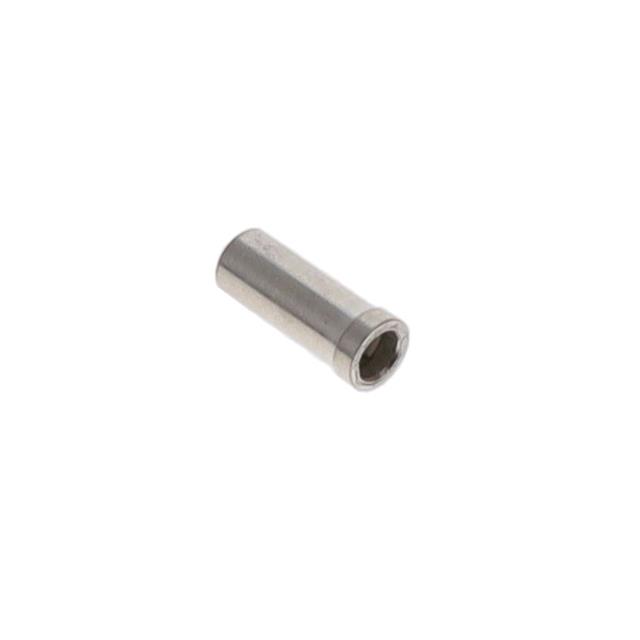

9280-0-15-80-13-80-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9280-0-15-80-13-80-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 1.63 mm |
| Accepts Pin Diameter [Max] [diameter] | 0.064 " |
| Accepts Pin Diameter [Min] [diameter] | 0.048 " |
| Accepts Pin Diameter [Min] [diameter] | 1.22 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Beryllium Copper |
| Flange Diameter | 2.79 mm |
| Flange Diameter [diameter] | 0.11 in |
| Length - Overall [x] | 0.28 in |
| Length - Overall [x] | 7.11 mm |
| Mounting Hole Diameter [diameter] | 0.102 in |
| Mounting Hole Diameter [diameter] | 2.59 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.088 in |
| Pin Hole Diameter [diameter] | 2.24 mm |
| Socket Depth | 0.24 in |
| Socket Depth | 6.1 mm |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.40 | |
| 10 | $ 1.18 | |||
| 100 | $ 1.06 | |||
| 1000 | $ 0.77 | |||
| 5000 | $ 0.67 | |||
| 10000 | $ 0.64 | |||
Description
General part information
9280-0 Series
Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Solder
